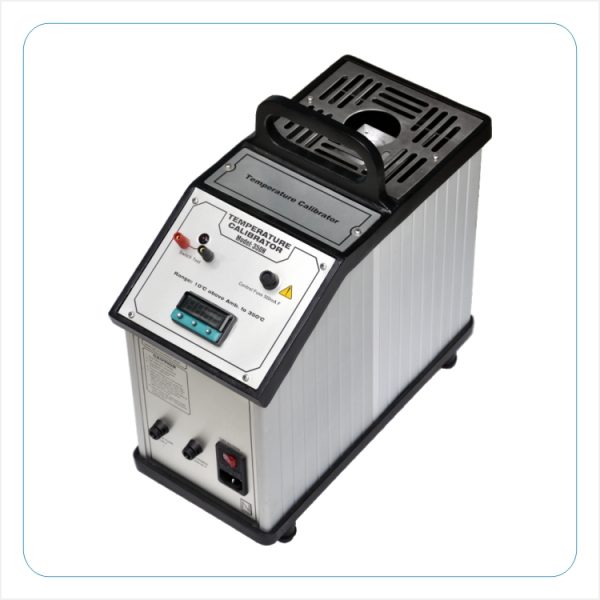

Nagman 350-H2 Low Temperature Dry Block Calibrator (10°C~350°C, 0.1°C)

  • 制造商: Nagman
    Model: 350-H2
    来源: India
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Range: 10°C above Ambient to 350°C

Resolution: 0.1°C

Accuracy: ±1°C

Stability: ±0.4°C

Stabilisation Time: 15 Minutes

Well Diameter: 25 mm

Immersion Depth: 190 mm

Heating Time (Ambient to max.): 28 Minutes approx.

Cooling Time max. (to 100°C): 60 Minutes approx.

Switch Test facility/ Supply: Provided/ 5V DC (open)

Interchangeable Thermowells: Single hole to suit 1/4″ & 1/2″ Probes–Standard  Other Sizes / Multihole – optional

Power Supply / Consumption:  230V AC / 50 Hz / 500 W

Instrument Dimensions (L x D x H): 160 x 365 x 450 mm

Instrument Weight (approx.): 8.5 Kg

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Insertion Tubes (to suit 1/4“ & 1/2“ probes)

Tool for Insertion Tubes

Spare Fuses

Traceable Calibration Certificate

Instruction Manual

Carrying Case

-Optionals:

RS-232 Computer Interface

“Caltemp” Calibration Software

Additional Thermowells / Insertion Tubes (to choose from) :

 + Single hole standard sizes to suit :

 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 7/8” & 3, 4, 5, 6, 7, 8, 10, 12, 13, 15, 17, 19 & 21 mm probes

 + Multihole (Typical) : (1x6 + 1x8), (3x6), (1x10 + 1x4) mm

115V AC / 60 Hz Power Supply

Dual Voltage selection (115V AC & 230V AC)

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory


Details

• Auto-tune PID Control

• Switch Test facility

• Fast and Reliable

• Improved Accuracy, Resolution & Stability

• Meets CE Norms

Datasheet
