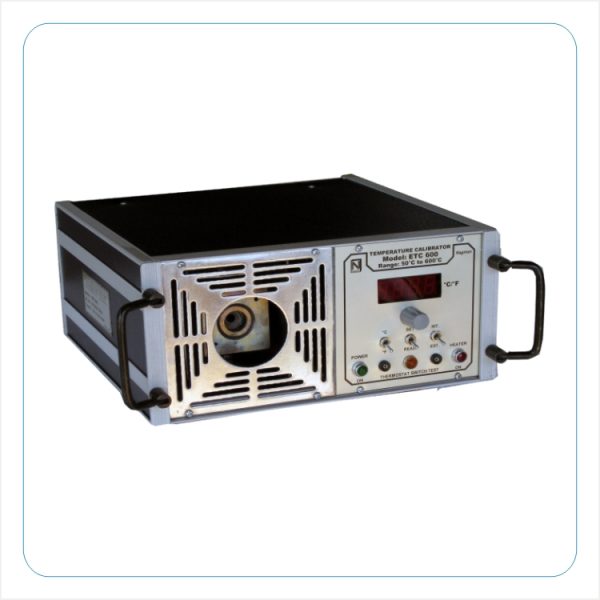

Nagman ETC 600-2 干式中温校准炉 (50°C~600°C, 1°C)

Range: 50°C to 600°C

Resolution: 1°C

Display: Digital Display, 3½ digit LED

Accuracy:  ±0.15% F.S. + 1 digit

Stability: ±0.5°C

Temperature Readout: °C / °F Switcheable

Well Diameter: 25 mm

Immersion Depth: 190 mm

Heating Time (Ambient to max.): 40 Minutes approx.

Cooling Time  (to 100°C): 100 Minutes

Switch Test facility/Supply: Provided/ 7 VDC Nominal

Interchangeable Thermowells: Single hole to suit 1/4″ & 1/2″ Probes.Other Sizes / Multihole available as optional.

Analog Output (F.S.): 10 mV / °C

Power Supply / Consumption: 230V AC / 50 Hz / 1200 Watts

Instrument Dimensions (L x D x H): 270 x 124 x 306 mm

Instrument Weight (approx.): 9 Kgs

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Insertion Tubes (to suit 1/4“ & 1/2“ probes)

Tool for Insertion Tubes

Spare Fuses

Traceable Calibration Certificate

Instruction Manual

Carrying Case

-Optionals:

Additional Thermowells / Insertion Tubes (to choose from) :

 Single hole standard sizes to suit :

 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 7/8” & 3, 4, 5, 6, 7, 8, 10, 12,

13, 15, 17, 19 & 21 mm probes

 Multihole (Typical) : (1x6 + 1x8), (3x6), (1x10 + 1x4) mm

115V AC / 60 Hz Power Supply

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory
