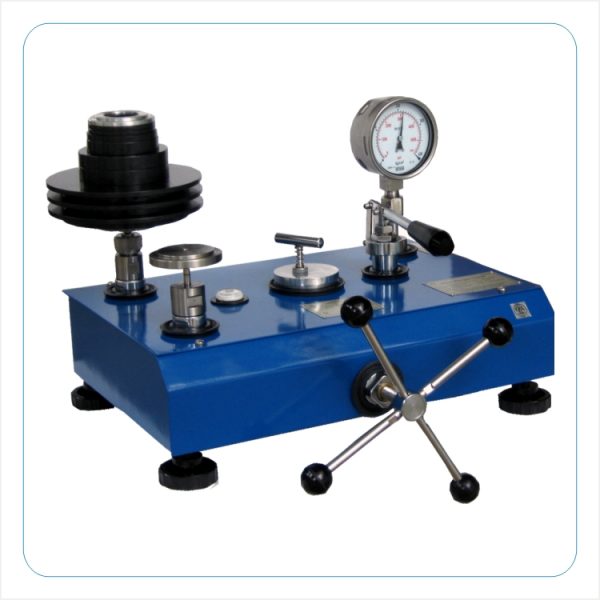

Nagman H3000 液压自重测试仪 (700 Bar, ±0.1% rdg)
制造商: Nagman Model: H3000 来源: India 保障: 12 Month - 报价要求
- 联系
Ranges: 35 / 70 / 100 / 160 / 350 / 600 / 700 Bar
Piston: Single / Dual
Standard Accuracy: ±0.1% of Reading
Weights: Mild Steel / Non-Magnetic Stainless Steel
Pressure generation: Thro’ Priming Pump & Screw Ram
Standard Corrections: Gravity : 9.80665 m/s2* / Temperature : 20°C / Air Density : 1.2 Kg/Cm2
Weight (approx.): Instrument : 19 Kg. ; Weight Sets : 8 to 33 Kg.
No. of Weights: 12 to 15
Instrument Dimensions: 530 x 325 x 230 mm (L x W x D)
Operating Fluid: Oil
PCU: Hardened Special Steel Piston & & Matching Cylinder
Remarks: Traceable to ISO/IEC 17025:2005 Accredited Calibration Lab
Standard Delivery: Basic Instrument, Calibrated M.S. / S.S Weight Sets, Operating Fluid (500 ml), Dust Cover, Wooden Carrying Case (for Weight Sets), Traceable Calibration Certificate, Instruction Manual
Optionals: Full set of Adaptors consisting of 1/8”, 1/4″, 3/8”, 1/2″ BSP (Set of NPT Adaptors available on request), Right angled Adaptor / Two Gauge Adaptor, Conversion Weight Sets to convert from one unit of Pressure to another, Incremental Weight Sets for smaller increments of Pressure, Pointer Puller / Punch, Set of Spanners & Screw Driver, Motorized Version, Calibration Certificate from NABL Accredited Laboratory (as per ISO/IEC 17025:2005)
