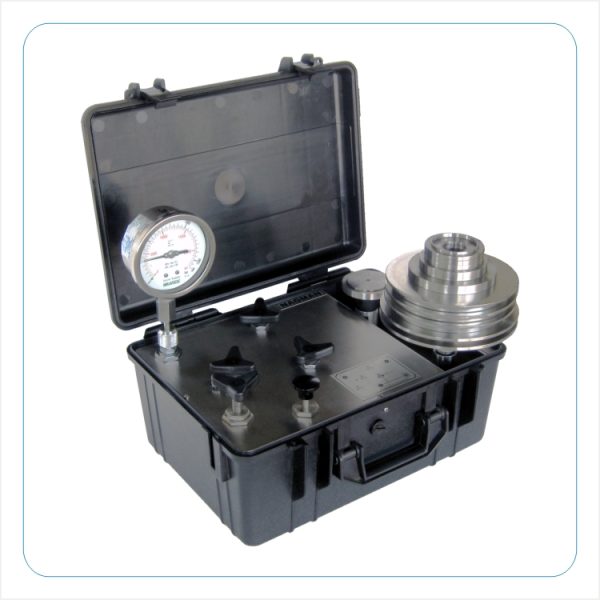

Nagman H3000portable 便携式液压自重测试仪 (700 Bar, ±0.1% rdg)

Ranges: 35 / 70 / 100 / 160 / 350 / 600 / 700 Bar

Piston: Single

Standard Accuracy: ±0.1% of Reading

Traceability: International Standards

Weights: Mild Steel / Non-Magnetic Stainless Steel

Pressure generation: Thro’ Priming Pump & Screw Ram

Standard Corrections: Gravity : 9.80665 m/s2* / Temperature : 20°C / Air Density : 1.2 Kg/Cm2

Weight (approx.): Instrument : 19 Kg. ; Weight Sets : 8 to 33 Kg.

No. of Weights: 12 to 15

Instrument Dimensions: 440 x 350 x 200 mm (L x B x H)

Operating Fluid: Oil

PCU: Hardened Special Steel Piston & & Matching Cylinder

Remarks: From ISO/IEC 17025:2005 Accredited Lab

Standard Delivery: Basic Instrument in a sturdy mobile case, Calibrated M.S. / S.S Weight Sets, Operating Fluid (500 ml), ‘O’ Ring & Seals, Wooden Carrying Case for Weight Sets, Traceable Calibration Certificate, Instruction Manual

Optionals: Full set of Adaptors consisting of 1/8”, 1/4″, 3/8”, 1/2″ BSP (Set of NPT Adaptors available on request), Right angled Adaptor / Two Gauge Adaptor, Conversion Weight Sets to convert from one unit of Pressure to another, Incremental Weight Sets for smaller increments of Pressure, Pointer Puller / Punch, Set of Spanners & Screw Driver, Motorized Version, Calibration Certificate from NABL Accredited Laboratory (as per ISO/IEC 17025:2005)
