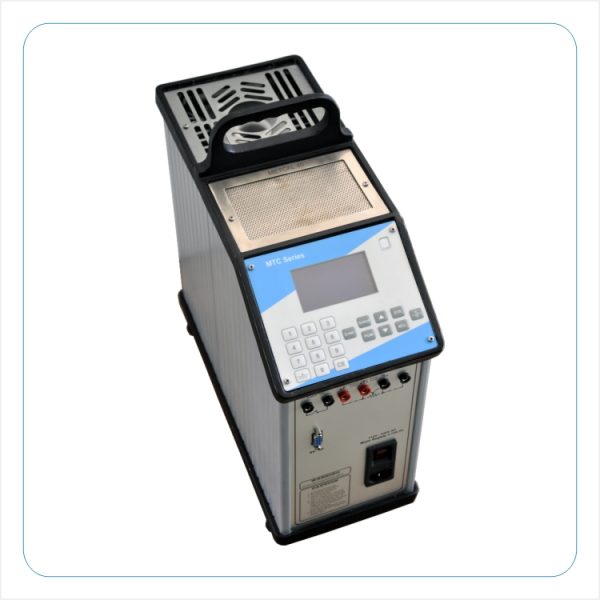

Nagman METCAL 40 干式温度校准炉 (-10°C~120°C, 0.01°C)

Range: -10°C to 120°C

Resolution: 0.01°C

Accuracy: ±0.2°C

Stability: ±0.02°C

Stabilisation Time: 7 Minutes

Temperature Readout: °C / °F Switcheable

Axial Uniformity (40 mm): ±0.2°C

Radial Uniformity: ±0.02°C

Well Diameter: 30 mm

Immersion Depth: 150 mm

Heating Time (Amb. to 120°C): 10 Minutes approx.

Cooling Time (Amb. to -10°C): 15 Minutes approx.

Cooling Time (120 to -10°C): 25 Minutes approx.

Switch Test facility: Provided

Interchangeable Thermowells: Multihole to suit 2 x ¼” & 1 x ½” Probes. Other Sizes available as optional

Housing: Bench-top

Power Supply: 110V AC to 240V AC, 50 to 60 Hz

Instrument Dimensions (L x D x H): 160 x 365 x 450 mm

Instrument Weight (approx.): 9 Kg

Measurement Capability:

+ Thermocouples: ISA Types J, K, R, S, N

+ RTD: Pt100, Pt200, Pt500, Pt1000

+ mA:  0 to 25 mA

+ mV: 0 to 100 / 1000 mV

+ Volt : 0 to 10

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Multihole Insertion Tubes (to suit 2 x ¼“ & 1 x ½“ probes)

Tool for Insertion Tubes

Spare Fuses

RS-232 Computer Interface & “METCAL” Calibration Software

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory

Instruction Manual

Carrying Case

-Optionals:

For additional Thermowells, / InsertionTubes & Multihole

Details

•    Advanced – Micro-controller based Technology

•    Large Graphic Display (Multi-information Display)

•    Touch Membrane Keypad

•    RS-232 Interface & Calibration Software

•    Count down timer (Shows when unit is stable)

•    Stability Indicator

Datasheet
