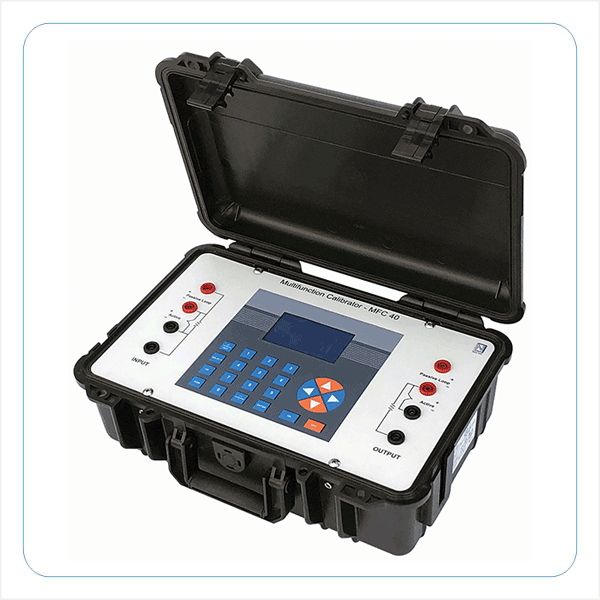

Nagman MFC 40 Portable Multifunction Process Calibrator ( ±0.025% F.S)

  • 制造商: Nagman
    Model: MFC 40
    来源: India
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




-DC Current

Measurement (Range/Resolution/ Accuracy/ I/P impedance):

0 to 50mA/ 0.001/ 0.025% FS/ <140 Ω at 1mA

Simulation (Range/ Resolution/ Accuracy):

0 to 50 mA/ 0.001/ 0.025%FS

- DC Voltage

Measurement (Range/Resolution/ Accuracy/ I/P impedance):

0 to 200mA/ 0.001/ 0.025% FS/ Rin > 10 MΩ

0 to 2000 mV/ 0.01/ 0.025% FS/ Rin > 10 MΩ

0 to 20V/0.0001/ 0.025% FS/ Rin > 10 MΩ

Simulation (Range Resolution/ Accuracy):

0 to 200mA/ 0.001/ 0.025% FS

0 to 2000 mV/ 0.01/ 0.025% FS

0 to 20V/0.0001/ 0.025% FS

- Resistance

Measurement (Range/ Resolution/ Accuracy):

400 Ω/ 0.001Ω/ 0.025% FS

4000 Ω/ 0.0001Ω/ 0.025% FS

Simulation (Range/ Resolution/ Accuracy):

400 Ω/ 0.001Ω/ 0.025% FS

4000 Ω/ 0.0001Ω/ 0.025% FS

-Temperature – Resistive Probes (IEC Std. 60751)

Measurement (Probe/ Range/ Resolution/ Accuracy):

Pt100/ -100°C to  800°C/ 0.01°C/ 0.05% FS

Pt200/ -100°C to  600°C/ 0.01°C/ 0.05% FS

Pt500/ -100°C to  530°C/ 0.01°C/ 0.05% FS

Pt1000/ -100°C to  650°C/ 0.01°C/ 0.05% FS

Simulation (Probe/ Range/ Resolution/ Accuracy):

Pt100/ 0°C to  800°C/ 0.01°C/ 0.05% FS

Pt200/ 0°C to  600°C/ 0.01°C/ 0.05% FS

Pt500/ 0°C to  530°C/ 0.01°C/ 0.05% FS

Pt1000/ 0°C to  650°C/ 0.01°C/ 0.05% FS


-Temperature – Thermocouple (IEC Std. 60584)

Measurement (Type/ Range/ Resolution/ Accuracy):

K/ -100°C to 1260°C/ 0.01°C/ 0.1% FS

J/ -100°C to 1200°C/ 0.01°C/ 0.1% FS

R/ 150°C to 1760°C/ 0.01°C/ 0.1% FS

B/ 920°C to 1820°C/ 0.01°C/ 0.1% FS

N/ 0°C to 1300°C/ 0.01°C/ 0.1% FS

S/ 170°C to 1760°C/ 0.01°C/ 0.1% FS

Measurement (Type/ Range/ Resolution/ Accuracy):

K/ 0°C to 1260°C/ 0.01°C/ 0.1% FS

J/ 0°C to 1200°C/ 0.01°C/ 0.1% FS

R/ 150°C to 1760°C/ 0.01°C/ 0.1% FS

B/ 950°C to 1820°C/ 0.01°C/ 0.1% FS

N/ 0°C to 1300°C/ 0.01°C/ 0.1% FS

S/ 170°C to 1300°C/ 0.01°C/ 0.1% FS

Standard delivery:

Multifunction Process Calibrator – MFC40

Rechargeable Battery with Power Adaptor

Operation Manual

Test Leads

Traceable Calibration Certificate

Optionals:

Calibration Certificate from NABL Accredited –as per ISO/IEC 17025:2005 Laboratory
