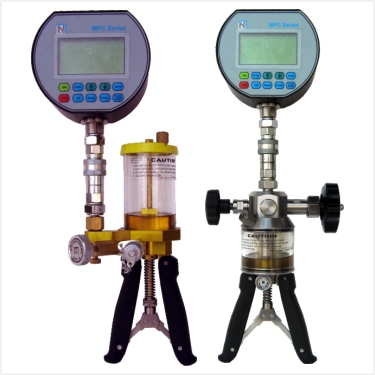

Nagman MPC-P+ Pneumatic Pressure Calibrator (60 bar, ±0.025% F.S.)

Ranges: -0.85 to 2 / 10 / 20 / 35 / 40 / 60 bar

Accuracy:  ±0.025% F.S.

Resolution: Minimum 5 digits

Temperature Compensation: 0 to 50°C (Automatic)

Display: Graphic

Engineering Units: Kg/cm2, Bar, mBar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa

mA Input: 50 mA (Active Loop) & 25 mA (Passive); Load Resistance : 800Ω

Volt Input: 0 to 30V DC

Resolution (mA / V):  0.001

Pressure Switch Test: Maximum 5V DC (approx.)

Over Pressure Alarm: 120% FS (Audio / Visual)

Battery Type: Rechargeable Battery

Low Battery Indication: Provided

Instrument Dimension: 420 x 340 x 120 mm (L x B x H)

Instrument Weight: 5 Kg

-Standard Delivery:

Pressure Indicator with matching Hand Pump

Set of Adaptors (BSP & NPT)

Test Leads & Seals Kit

Hose with End Fittings

External Battery Charger

RS-232 Computer Interface

Carrying Case

Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory

Instruction Manual

-Optionals:

“Calpress” Calibration Software

Detail

Datasheet
