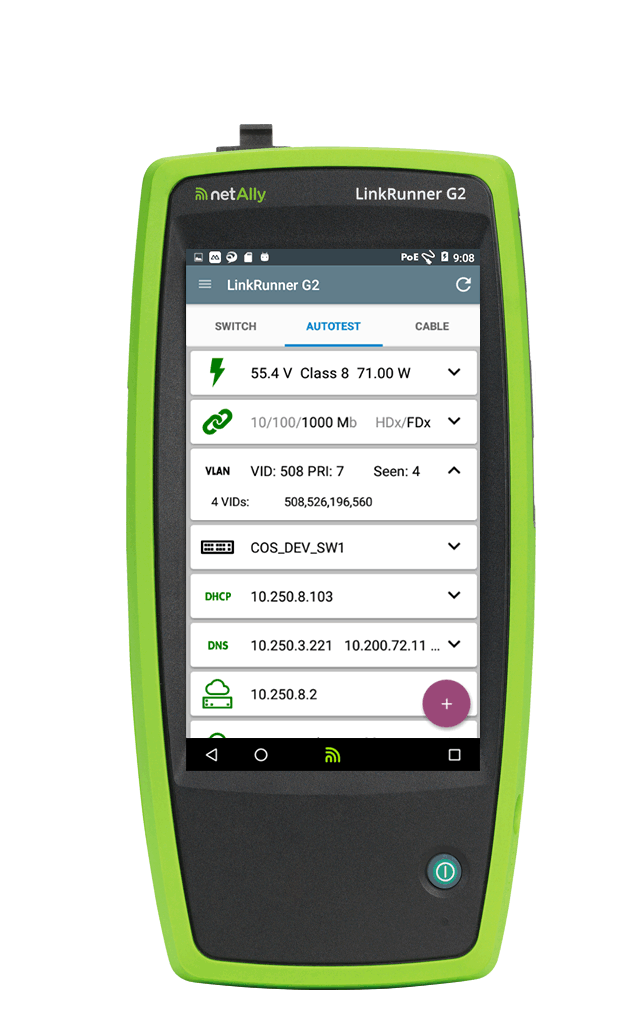

Netally LR-G2 智能网络测试仪


Dimensions: 3.8 in x 7.7 in x 1.6 in (9.7 cm x 19.6 cm x 4.1 cm)

Weight: 18 oz (0.51 kg)

Battery: Rechargeable lithium-ion battery pack (3.6 V, 6 Ah, 21 Wh)

Battery Life: Typical operating life is 4 hours. Typical charge time is 7 hours.

Display: 5.0 in color LCD with capacitive touch screen (480 x 800 pixels)

Keypad: 1-key elastometric (power only)

Host Interface: Micro USB On-the-Go port

USB Port: USB 2.0 Type A port

SD Card Slot: Supports Micro SD

Cable Test: Pair length, crossed, reversed and distance to open, short, split

Tone Generator: Digital tone: [455 KHz]; Analog tones: [400 Hz, 1KHz]

Ports: RJ-45 copper port 10/100/1000BASE-T. 100/1000BASE-X. Fiber adapter port. Fiber port supports standard SFP

External AC Adapter/Charger: AC input 90-264 Vac 48-62 Hz input power DC output 15 Vdc at 2 amps or RJ-45 via PoE



Operating Temperature: 32°F to 113°F (0°C to +45°C) NOTE: The battery will not charge if the internal temperature of the tester is above 122°F (50°C)

Operating Relative Humidity (% RH without condensation): 90% (50°F to 95°F; 10°C to 35°C); 75% (95°F to 113°F; 35°C to 45°C)

Shock and Vibrations: 1 m drop test, Random, 3.8 grms, 5 Hz-500 Hz (Class 2)

Safety: IEC 61010-1:2010: Pollution degree 2

Altitude: 4,000 m; Storage: 12,000 m

EMC: IEC 61326-1:2013: Basic Electromagnetic Environment; CISPR 11: Group 1, Class A

Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.

Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.

Includes: (1) LinkRunner G2 with Li-ION battery, power supply with regional power plugs,  Wireview wire mapper #1, Inline RJ-45 coupler, USB 2.0 to Micro USB cable, 8 G Micro SD card, small soft case, coupler, and Quick Start Guide.
