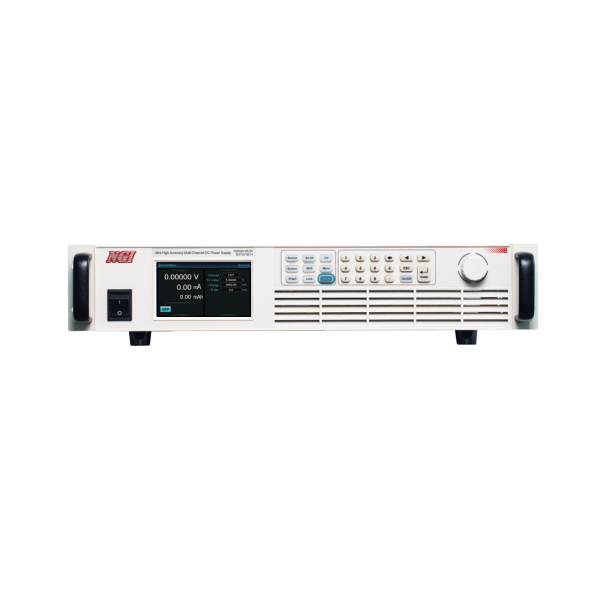

NGI N23020-06-01 高精度多路可编程直流电源 (0~6V, 0~1A/0.1mA)

Voltage

Range: 0~6V

Setting Resolution: 0.01mV

Setting Precision (23±5℃): 0.001%+0.1mV

Readback Resolution: 0.01mV

Readback Precision (23±5℃): 0.001%+0.1mV

Ripple Noise: ≤2mVrms

Long-term stability: 40ppm/1000h

Temperature Coefficient: 10ppm/℃

Current

Range: 0~1A/ 0~1mA

Setting Resolution: 0.01mA/ 0.01μA

Setting Precision (23±5℃): 0.001%+0.5mA / 0.001%+0.5μA

Readback Resolution: 0.01mA/0.01μA

Readback Precision (23±5℃): 0.001%+0.5mA/ 0.001%+0.5μA

Long-term stability: 40ppm/1000h

Temperature Coefficient: 20ppm/℃

Withstand Voltage (Output Relative to Earth): 1000VDC

Withstand Voltage (Channel to Channel): 500VDC

Operating Environment: Operating Temperature:0℃~40℃;Storage Temperature:-20℃~60℃;Altitude<2000m;Relative Humidity:5%~90%RH(non-condensing);Atmosphere Pressure:80~110kPa

Communication Interface: LAN/RS232/CAN

AC Input: Voltage:220V AC,Frequency:47Hz~63Hz,Current:≤2A@220V

Dimension: 0.001%+0.5mA 0.001%+0.5μA

Net weight: Approx. 20kg
