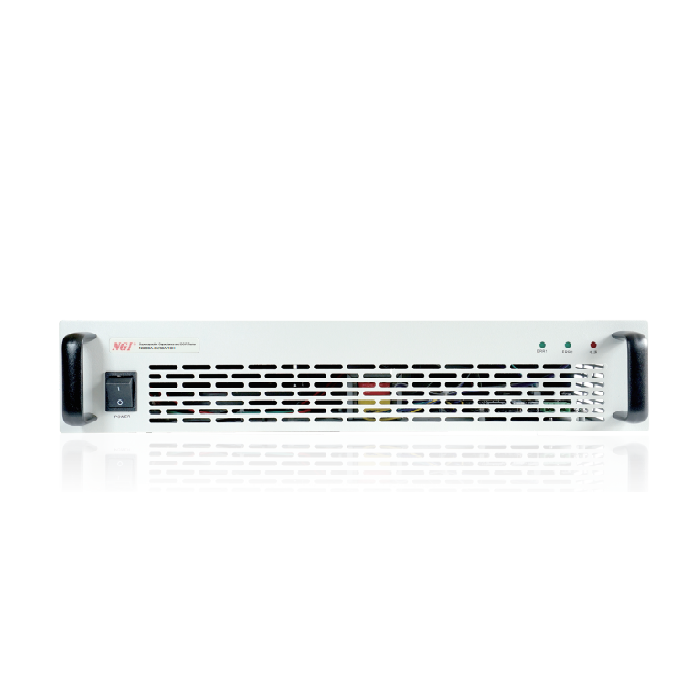

NGI N5800A-05401 超级电容器电容及DCIR测试仪 (400A, 5V, 2000W)

Current: 400A

Voltage: 5V

Power: 2000W

Channel: 1CH

CC Mode

Range: 0~400A

Setting Resolution: 8mA

Setting Accuracy: 0.05%+0.05%F.S

CV Mode

Range: 5V

Setting Resolution: 0.08mV

Setting Accuracy: 0.05%+0.05%F.S

Internal Resistance Measurement

Range 0

Output range: 0~100mV

Resolution: 50μV

Accuracy: 0.1%+0.1%F.S

Range 1

Output range: 0~50mV

Resolution: 25μV

Accuracy: 0.1%+0.1%F.S

Range 2

Output range: 0~30mV

Resolution: 15μV

Accuracy: 0.1%+0.1%F.S

Range 3

Output range: 0~15mV

Resolution: 7.5μV

Accuracy: 0.1%+0.1%F.S

Current Measurement

Range: 0~400A

Readback Resolution: 24 bits

Readback Accuracy: 0.05%+0.05%F.S.

Voltage Measurement

Range: 0~5V

Readback Resolution: 24 bits

Readback Accuracy: 0.02%+0.02%F.S.

Operating Temperature: -10℃-40℃

Relative Humidity: 5%-90%

AC Input: 220V AC±10%, frequency 47Hz-63Hz

Net Weight: Approx. 100kg

Dimension: 8U
