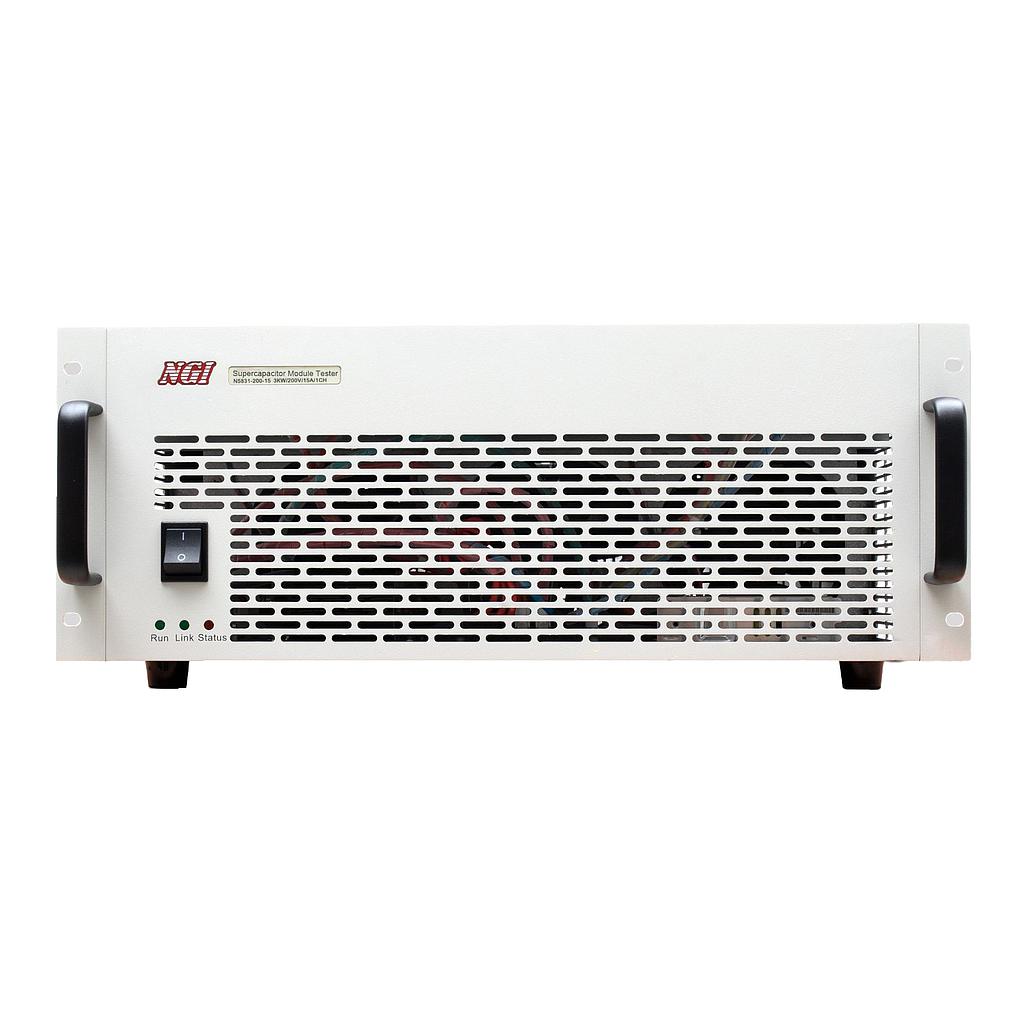

NGI N5831-200-30 超级电容器模块电容及DCIR测试仪 (200V, 30A, 6000W, 1CH)

Current: 30A

Voltage: 200V

Power: 6000W

Channel: 1CH

CC Mode

Range: 0~30A

Setting Resolution: 24bits

Setting Accuracy: 0.05%+0.05%F.S

CV Mode

Range: 200V

Setting Resolution: 24 bits

Setting Accuracy: 0.05%+0.05%F.S

Internal Resistance Measurement

Range 0

Output range: 0~100mV

Resolution: 50μV

Accuracy: 0.2%+0.2%F.S

Range 1

Output range: 0~50mV

Resolution: 25μV

Accuracy: 0.2%+0.2%F.S

Range 2

Output range: 0~30mV

Resolution: 15μV

Accuracy: 0.2%+0.2%F.S

Range 3

Output range: 0~15mV

Resolution: 7.5μV

Accuracy: 0.2%+0.2%F.S

Current Measurement

Range: 0~30A

Readback Resolution: 24 bits

Readback Accuracy: 0.05%+0.05%F.S.

Voltage Measurement

Range: 0~200V

Readback Resolution: 24 bits

Readback Accuracy: 0.02%+0.02%F.S.

Operating Temperature: -10℃-40℃

Relative Humidity: 5%-90%

Atmospheric Pressure: 80-100kPa

AC Input: 220V AC±10%, frequency 47Hz-63Hz

Net Weight: Approx. 72kg

Height: 8U
