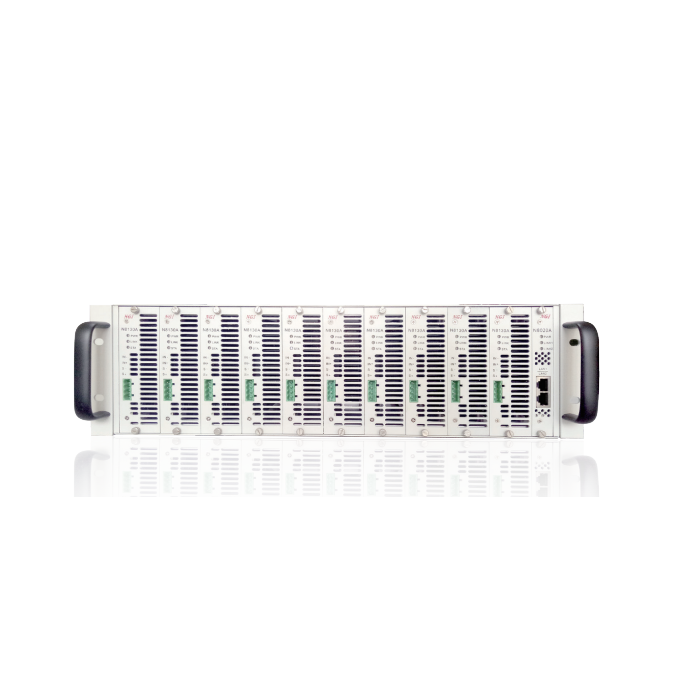

NGI N8130A-06100 超级电容器电容及DCIR测试仪 (10A, 6V, 60W, 10CH)

Current: 10A

Voltage: 6V

Power: 60W

Channel: 10CH

CC Mode

Range: 0~10A

Setting Resolution: 167μA

Setting Accuracy: 0.05%+0.05%F.S

CV Mode

Range: 6V

Setting Resolution: 0.1mV

Setting Accuracy: 0.05%+0.05%F.S

Internal Resistance Measurement

Range 0

Output range: 0~100mV

Resolution: 50μV

Accuracy: 0.1%+0.1%F.S

Range 1

Output range: 0~50mV

Resolution: 25μV

Accuracy: 0.1%+0.1%F.S

Range 2

Output range: 0~30mV

Resolution: 15μV

Accuracy: 0.1%+0.1%F.S

Range 3

Output range: 0~15mV

Resolution: 7.5μV

Accuracy: 0.1%+0.1%F.S

Current Measurement

Range: 0~10A

Readback Resolution: 24 bits

Readback Accuracy: 0.05%+0.05%F.S.

Voltage Measurement

Range: 0~6V

Readback Resolution: 24 bits

Readback Accuracy: 0.02%+0.02%F.S.

Operating Temperature: -10℃-40℃

Relative Humidity: 5%-90%

AC Input: 220V AC±10%, frequency 47Hz-63Hz

Net Weight: Approx. 13.5kg

Dimension: 3U, 132.5(H)*482.6(W)*360(D)mm
