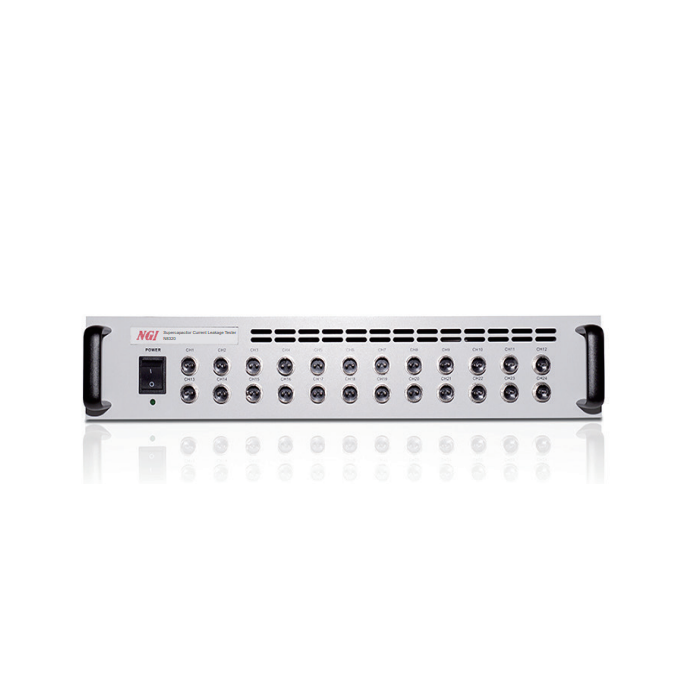

NGI N8321 超级电容器漏电测试仪 (20A)

Current Limit Resistance: 1Ω/ 10Ω/ 100Ω

Max. Charging Current: 1A/20A, 0.6A/20A, 0.06A/20A

Current Leakage Readback Resolution: 1μA/ 100nA/ 10nA

Current Leakage Readback Accuracy: 0.05%+0.05%F.S.

Current Readback Temperature Coefficient: <50ppm/℃

Charging Voltage Range: 0~6V

Voltage Setting Resolution: 16 bits

Voltage Setting Accuracy: 0.01%+0.01%F.S

Voltage Setting Temperature Coefficient: 0.5ppm/℃

Max. Output Power: 120W

Voltage Readback Range: 0~6V

Voltage Readback Resolution : 12 bits

Voltage Readback Accuracy: 0.1%+0.1%F.S

Channels: 24CH

Interface: LAN/RS485

Data Export Format: Excel/JPG

Operating Temperature: -10℃-40℃

Relative Humidity: 5%-90%

Atmospheric Pressure: 80-110kPa

AC Input: 220V AC±10%, frequency 47Hz-63Hz(Please refer to the nameplate.)

Dimension: 2U, 88(H)*482.6(W)*553.3(D)mm

Net Weight: Approx. 10kg
