Analog Input Bandwidth: 6 GHz
Maximum Sample Rate: 6.4 GS/s
Dynamic RAM (DRAM): 4 GB
Analog Input Voltage Range: 1.25 Vpp
Analog Input Resolution: 12 bits
Number of Voltage Input Channels: 2
FPGA: Kintex UltraScale KU035
Analog Input Coupling: AC

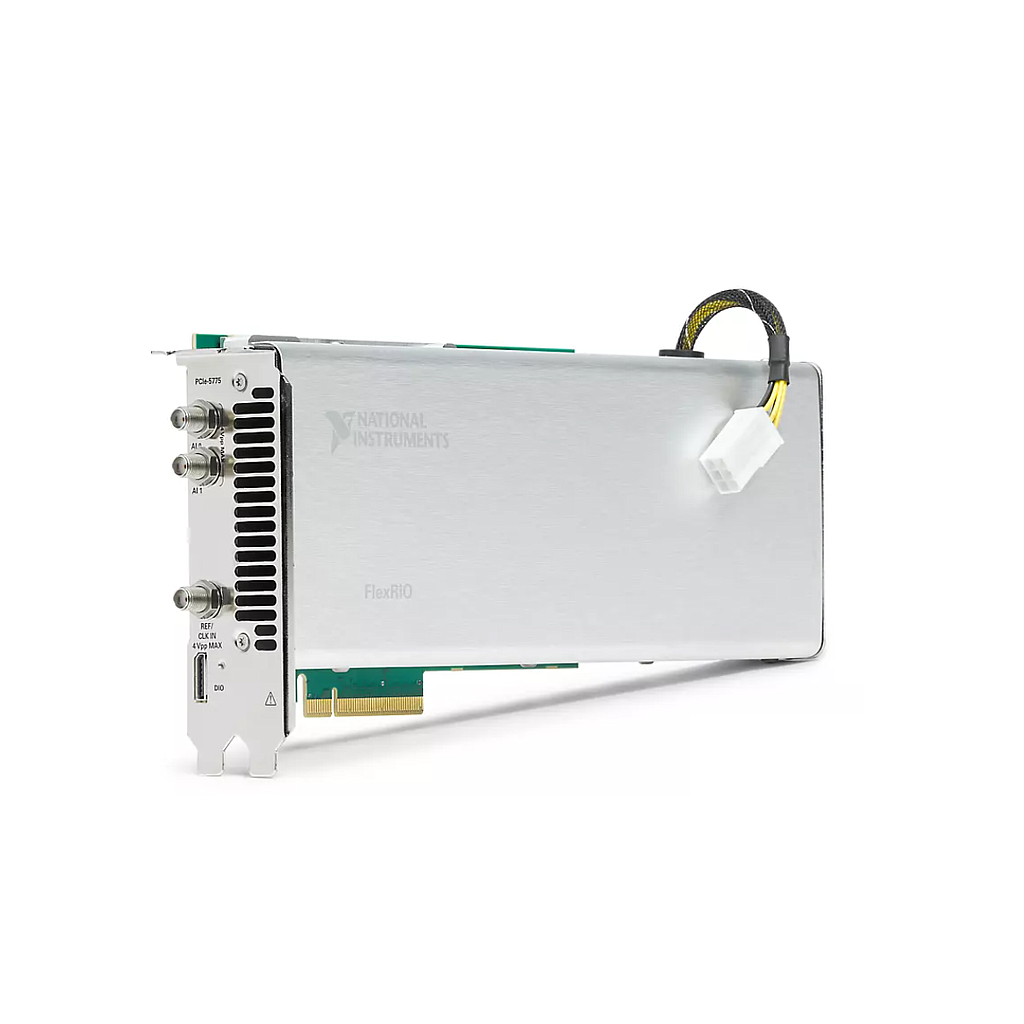

Combines A/D converter technologies with Xilinx FPGAs for PCI applications that demand real-time signal processing and high-performance analog input.
FlexRIO Digitizer Devices feature high-performance analog-to-digital converters with lightweight analog front-ends designed to maximize sample rate, bandwidth, and dynamic range. These devices use FPGAs from Xilinx alongside LabVIEW and Vivado programming options for custom algorithm implementation and real-time signal processing. These devices also feature an auxiliary I/O connector with GPIO for triggering or digital interfacing and the option for high-speed serial communication.
