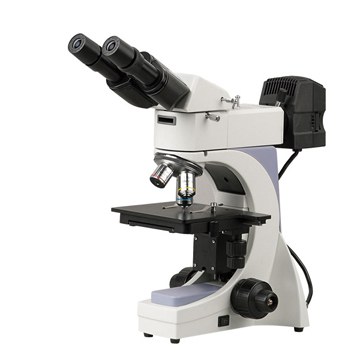

Novel MV2100 Metallurgical Microscope (Binocular,WF10×/18,75×50mm)

Viewing Head: Binocular Head

Eyepiece: WF10×/18

Infinitive Plan Achromatic Objectives

4×/0.1/∞/- WD17.3mm

10×/0.25/∞/- WD10.0mm

40×/0.60/∞/0 WD2.9mm

Nosepiece: Quadruple nosepiece

Stage: Double layer mechanical stage150×140mm/75×50mm

Focusing: Coaxial fine & coarse adjustment

Illumination:

- Kohler Illumination

- Epi-illuminator with iris aperture diaphragm and iris field diaphragm

- 6V/20W Halogen Lamp, Brightness Adjustable

Filter: Blue, Green, Yellow, Ground glass
