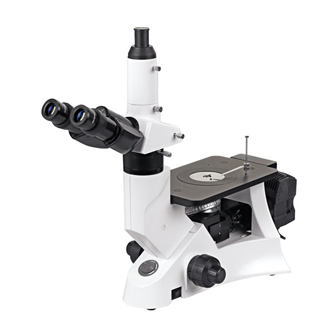

Novel NIM-100 Metallurgical Microscope (Trinocular,30°,48-75mm,EW10×/ 20)

Viewing Head: Trinocular head inclined at 30°, Interpupillary 48-75mm

Eyepiece: High-point, Extra wide field eyepiece EW10×/ 20

Infinitive Plan Achromatic Objectives:

  • 4×/0.1

  • 10×/0.25

  • 20×/0.4

  • 40×/0.6

Nosepiece: Quadruple nosepiece

Stage: Plain stage with slide clips

Focusing:

  • Coaxial fine & coarse adjustment

  • Vertical objective movement

  •  Coarse stroke: 37.7mmper rotation

  •  Fine stroke: 0.2mm per rotation

Illumination: Halogen lamp 6V/ 30W, Kohler illumination

Filter: Blue, Green, Yellow, Ground glass
