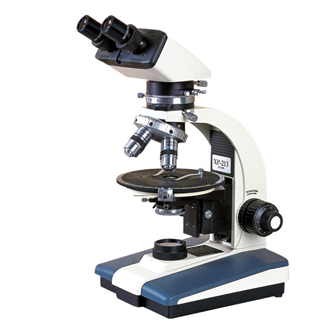

Novel XP-213 Polarizing Microscope (binocular,30°,WF10×/18,0°-90°)

Viewing Head: Sliding binocular viewing head, Inclined at 30°

Eyepiece

• Eyepiece WF10×/18 with scale of cross hair

• Eyepiece WF10×/18 with graticule

• Eyepiece WF 10×/18

Objective: Strain free achromatic objective 4×, 10×, 25×, 40×, 63×

Nosepiece: Backward quadruple nosepiece, Center adjustable

Analyzer: Rotatable analyzer with gradation 0°-90°

Bertrand Lens: Bertrand lens, Sliding in/out of optical path

Optical Compensator: λ Slip（first class red）, 1/ 4λ Slip, Quartz wedge

Revolving Round Stage: Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale

Condenser: NA1.25 Abbe condenser with iris diaphragm & filter

Focusing: Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm

Polarizer: 360°rotatable

Illumination: 12V/ 20W Halogen Lamp, Brightness Adjustable (Transmitted illumination)

Accessories:

• Micrometer

• Blue filter
