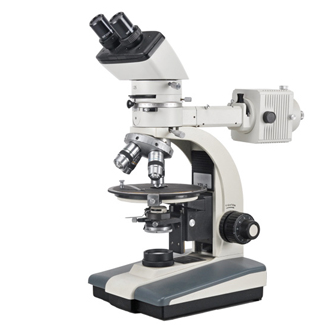

Novel XPL-2 Polarizing Microscope (binocular,45°,WF10×/18,0°-90°)

Viewing Head: Sliding binocular viewing head, Inclined at 45°

Eyepiece

• Eyepiece WF10×/18 with scale of cross hair

• Eyepiece WF10×/18 with graticule

• Eyepiece WF 10×/18

Objective

• Strain free achromatic objective 4×, 10×, 25×, 40×, 63×

• Strain free plan achromatic objective 25×, 40×, 63×

Nosepiece: Backward quadruple nosepiece, Center adjustable

Analyzer: Rotatable analyzer with gradation 0°-90°

Bertrand Lens: Bertrand lens, Sliding in/out of optical path

Optical Compensator: λ Slip (first class red), 1/ 4λ Slip, Quartz wedge

Revolving Round Stage: Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale

Condenser: NA1.25 Abbe condenser with iris diaphragm & filter

Focusing: Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm

Polarizer: 360°rotatable

Illumination:

• 12V/ 20W Halogen Lamp, Brightness Adjustable (Transmitted illumination)

• 12V/ 50W Halogen lamp, Brightness adjustable (Reflected illumination)

Accessories: Micrometer
