Novotest IPSM-U + T 强度计

IMSP-U+T-additionally  allows  control of homogeneity, measure the depth of cracks
The range of measurements of the propagation of ultrasonic vibrations :10~ 9999  µs
The measurement resolution of the propagation time of ultrasonic vibration: 0.1  µs
The operating frequency of the ultrasonic oscillations: 50-100 Khz
The base surface sounding measurements: 120 mm
The output voltage: 600 V
Overall dimensions of el. unit: 122*65*23 mm
Operating temperature: -20…+40 C°
Power: 2 AA batteries
Time of continuous operation: 10 hour
Standard package: Electronic unit, Surface sounding probe with cables, Standard sample, 2 AA batteries, Charger, Operating manual, Packing container

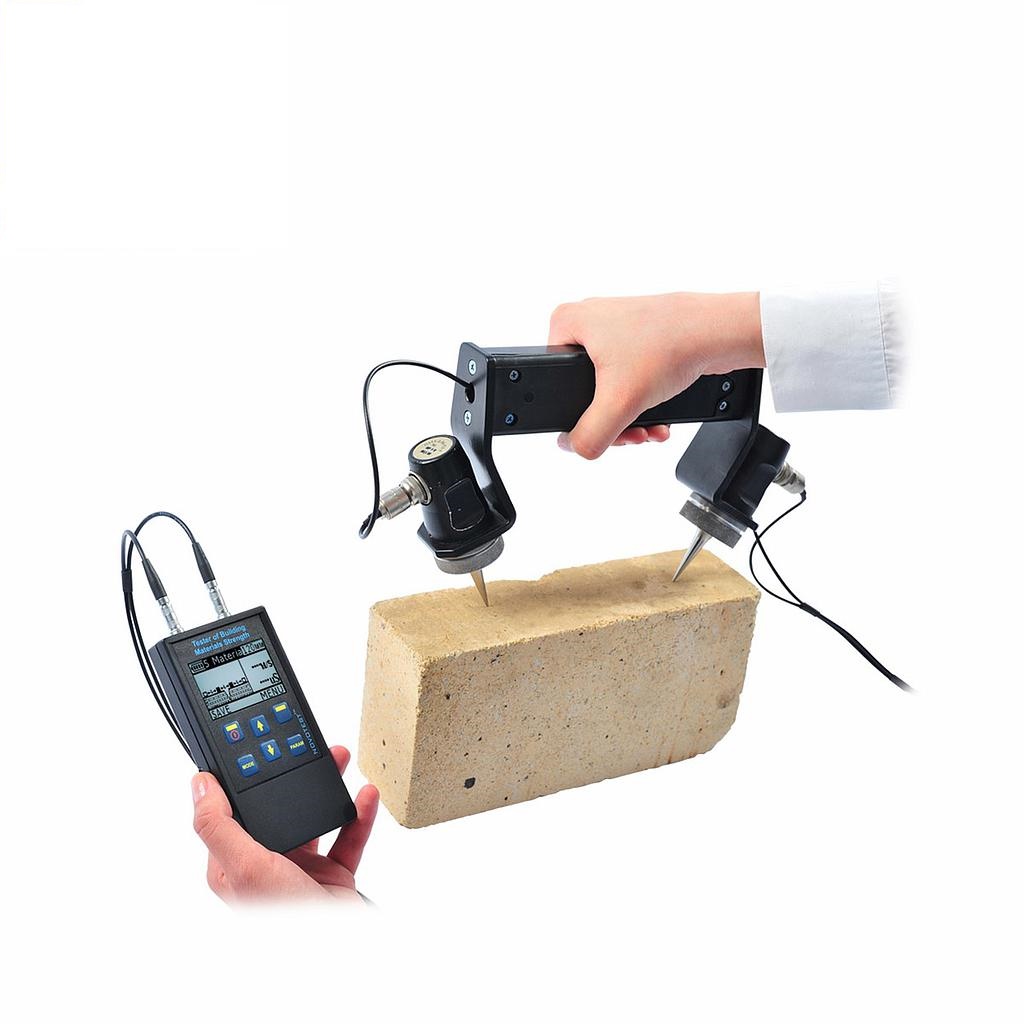

Strength Meter NOVOTEST IPSM-U+T

Device allows measure the strength and homogeneity of the concrete, brick and other materials under the composition and surface sounding in products and designs for construction projects, inspection of buildings and structures. Has the function of determining the depth of cracks by the surface sounding probe.

Measuring the strength and uniformity of construction materials by ultrasonic method NOVOTEST IPSM-U+T is designed for:

  • detection of voids, cracks and defects encountered in the production and operation of structures (for process control and inspection of facilities);
  • measure and uniformity of concrete strength (Guidelines MDS 62-2.01), construction and composite materials, structures, bridges and waterworks;
  • measure the depth of cracks in the tested materials;
  • determine the density and elastic modulus fiberglass and so on;
  • definitions of sound index of construction ceramics and abrasives;
  • estimates of the porosity, fracturing and anisotropy of the material;
  • assess the degree of maturity of the concrete in a monolithic concreting.
