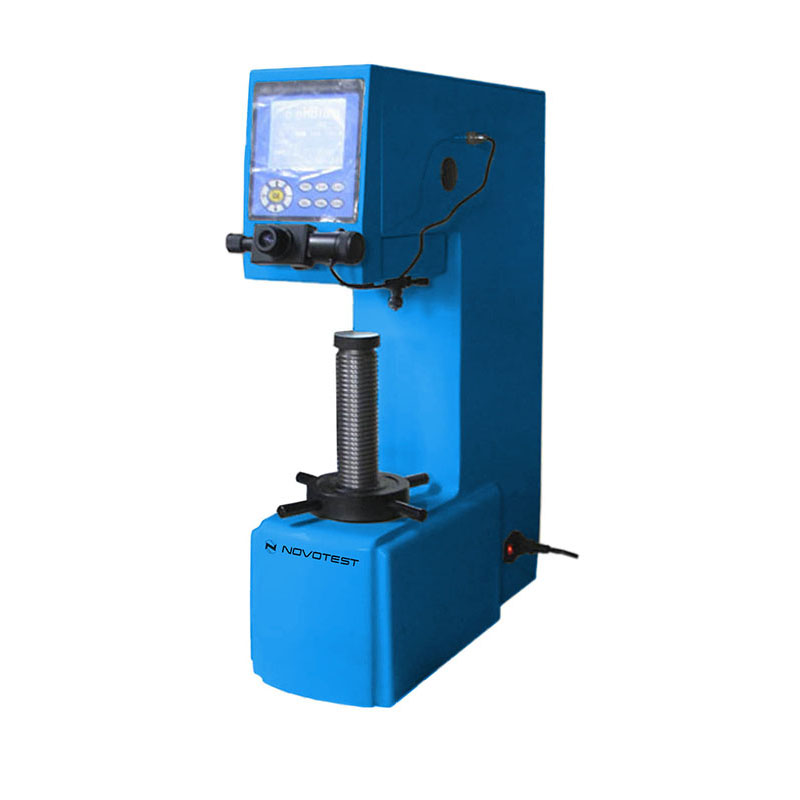

Novotest TB-B-CM 数字硬度计

Brinell scale: HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000
Testing load: 62.5kg (612.9N), 100kg (980.7N) 125kg 1226N) 187.5kg (1839N), 250kg (2452N), 500kg (4903N), 750kg (7355N), 1000kg (9807N), 1500kg (14710N), 3000kg (29420N)
Measuring range: 80-650 HB
Time of measuring: 5~60 s
Instrument dimensions: 550*210*750 mm
Net weight: 125 kg
Maximum height of test sample: 230 mm
Maximum depth of test sample: 135 mm
Power supply: 220 V (Other power supply – on request)
Standard package: Bench Hardness Tester NOVOTEST TB-B-CM, Measuring microscope, Ball indenters (2.5, 5 and 10 mm), Large flat table; small flat table; V-shaped table, Brinell hardness tests blocks (3 pcs), Power supply, Supply cable, Operating manual

Option Rockwell Hardness Test Block HRC (HRA orHRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD

Detail

Digital Brinell Hardness Tester NOVOTEST TB-B-CM

Brinell hardness tester is used for:

  • hardness testing of metal products of Brinell scale;
  • hardness testing of metals with different properties from steels (non-ferrous metals, alloys, cast iron, etc.) without additional calibrations;
  • quality testing of heat treatment of metal parts;
  • verification of calibration hardness tests blocks;
  • calibration of portable hardness testers.

Digital Brinell hardness tester provides automatic electronically controlling of load, which allows user to simplify the operation with the hardness tester, and that is significantly increasing accuracy and productivity of testing. Bench Digital Brinell Hardness Tester NOVOTEST TB-B-CM has high measuring accuracy, wide area of measuring, automatic loading, automatic timing and automatic unloading.
Brinell Hardness Tester NOVOTEST TB-B-CM is designed for hardness testing of metal products of Brinell scale (non-hardened steel, cast iron, nonferrous metals and bearings of soft alloy), device also suitable for testing the harder metal materials and hardened steels.
Digital Brinell Hardness Tester NOVOTEST TB-B-CM corresponds to the standards ISO 6506-2 and ASTM E10.
