Novotest TB-BRV 数字硬度计

Rockwell scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
Testing load: 60kgf (588N), 100kgf (980N), 150kgf (1471N)
Brinell scale: HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5, HBW2.5/187.5
Testing load: 31.25kgf (306.5N), 62.5kgf (612.9N), 187.5kgf (1839N)
Vickers scale: HV30, HV100
Testing load: 30kgf (294.2N), 100kgf (980.7N)
Indication of hardness values: Rockwell:display
Brinell and Vickers: measuring microscope
Microscope zoom: 37.5X, 75X
Measuring time: 1 ~ 60 s
Instrument dimensions: 520*240*700 мм (L*W*H)
Net weight: 80 kg
Maximum height of test sample: Rockwell: 170 mm; Brinell and Vickers: 140 mm
Maximum depth of test sample: 165 mm
Power supply: 220V ± 5%, 50 ~ 60 Hz
Standard set: Rockwell indenter, Vickers indenter with a diameter of 1.5875, 2.5, 5 mm, hard alloy steel ball, measuring microscope. Indoor and outdoor lighting kit. Large, medium and V-shaped tables, power supply, supply cable

Option Rockwell Hardness Test Block HRC (HRA orHRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD

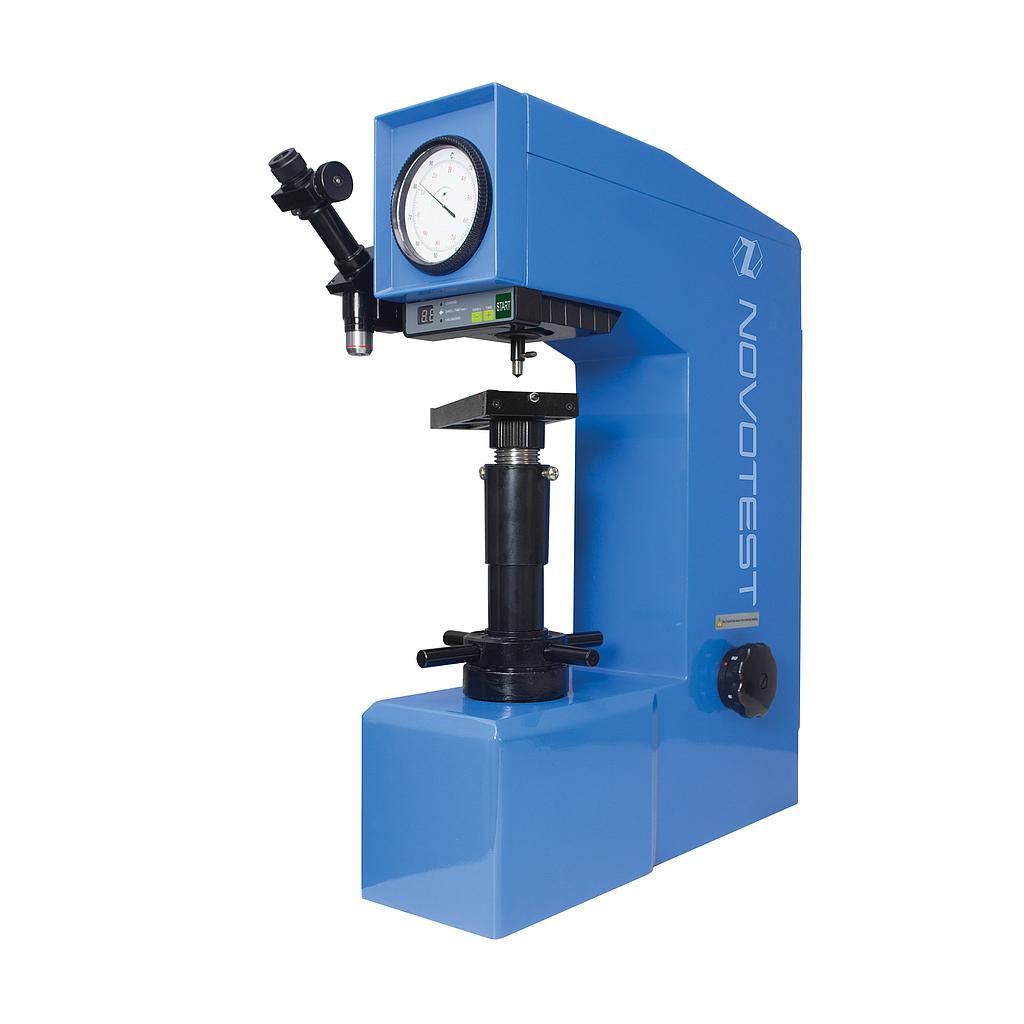

Brinell, Rockwell, Vickers Hardness Tester NOVOTEST TB-BRV

Universal Brinell, Rockwell, Vickers Hardness tester is designed for hardness testing of ferrous and non-ferrous metals and hard alloys. Hardness tester TB-BRV can be used in industry, scientific research institutes, laboratories and workshops. Hardness tester TB-BRV has a new design, which is very usability and it also has the high repeatability of the results and it very easy to service.
This hardness tester uses a multi-stage test load and different types of indenter to measure and determine the hardness value of tests products by Brinell, Rockwell and Vickers scales. The device can be used for hardness testing of ferrous metals (steel, cast iron, low carbon steel and tempered steel, etc) and non-ferrous metals (alloys from aluminum, copper, etc). It is also suitable for the hardness testing of hard alloys, carburized and chemically treated layers. The microscope mounted on the body. Hardness tester provides the high sensitivity and accuracy of the load level, and the high accuracy of the measuring values.
