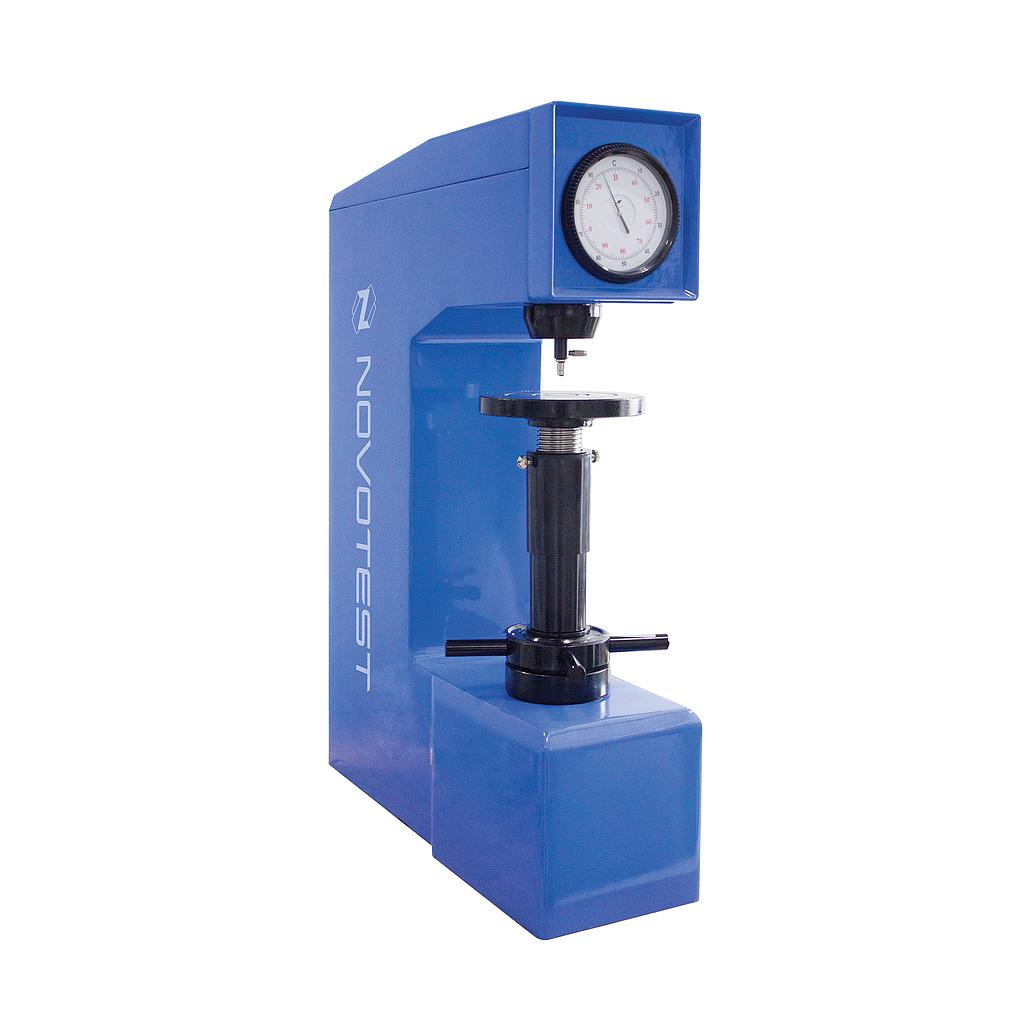

NOVOTEST TB-R 硬度计 (indicator)

Preload: 98,07N (10kg)

Testing load: 588,4N (60kg); 980,7N (100kg); 1471N (150kg)

Rockwell scale: 20-88 HRA; 20-100 HRB; 20-70 HRC

Maximum height of test sample: 200 mm

Maximum depth of test sample: 165 mm

Instrument dimensions: 630 x 500 x 860 mm

Net weight: 55 kg

Standard package: Bench hardness tester; Ball indenter (1.5875 mm); Conical diamond indenter (by 120 °); Big flat table; Small flat table; V-shaped table; Rockwell hardness calibration blocks (3 pcs.); Operating manual

Details

Application:

The mechanical Rockwell bench hardness tester can be used for:

- hardness testing of products made of various kinds of steels, such as tempered cast iron and all sorts of alloys, stainless steel and others; tempered cast iron and all sorts of alloys

- manufacturing of calibration test blocks, which can be used for calibration of portable hardness testers

Advantages:

- High measurement accuracy

- Wide range of measurements

- Device is very usability and reliability, through the using high quality materials in the manufacturing

- Significant advantages from other methods of hardness testing of tempered steels

- Device allows user to test steel samples after various heat treatments

- Device allows test blocks verification for calibration of portable hardness tester
