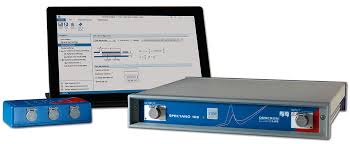

OMICRON SPECTANO 100 介电材料分析仪 (FDS and PDC, 5 μHz to 5 kHz)

Voltage Source

Output voltage: ± 100 mVpeak to ± 200 Vpeak

Max. output current: 50 mApeak


Frequency Domain Spectroscopy (FDS)

Measurement current: max. ± 50 mApeak

Frequency range: 5 μHz to 5 kHz



Time Domain Current Measurement (PDC)

Measurement current: max. 10 mA

Frequency range: 20 µHz to 99 mHz

Input resistance: 2 kΩ


Combined Mode (FDS and PDC)

Frequency range: 20 μHz to 5 kHz

Time reduction: Up to 75 % in comparison to exclusive FDS measurements


Capacitance, Dissipation Factor and Impedance

Tanδ range: > 3x10-4

Capacitance range: 10 pF to 100 μF

Impedance range: 100 Ω to 20 TΩ


Dimensions (w x h x d): 260 x 50 x 256 mm (10.25 x 2 x 10.5 inch)

Weight: 2.3 kg (5 Ib)
