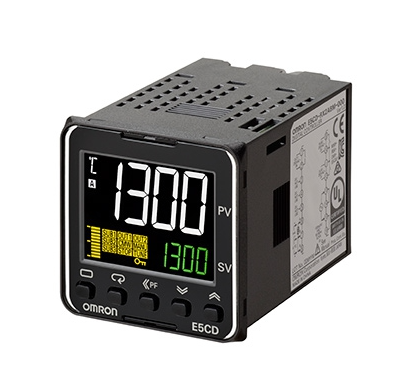

OMRON E5CD-CX2DBM-004 数字温度控制器 (24 VAC/DC; 48x48mm)

Type: E5CD

Power supply voltage:  24 VAC, 50/60 Hz; 24 VDC

Operating voltage range: 85% to 110% of rated supply voltage

Input sampling period: 50 ms

Insulation resistance: 20 MΩ min. (at 500 VDC)

Dielectric strength: 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge

Control method: ON/OFF control or 2-PID control (with auto-tuning)

Indication method: 11-segment digital display, individual indicators, and bar display

Character height: PV: 14.9 mm, SV: 7.1 mm

Altitude: 2,000 m max.

Dimensions: 48 × 48 mm

Degree of protection: Front panel: IP66, Rear case: IP20, Terminals: IP00

Ambient operating temperature: -10-55°C

Ambient operating humidity: 25%-85% RH


Model Number Legend
