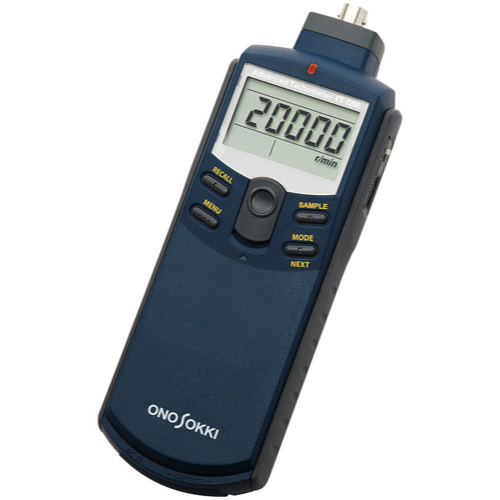

Onosokki FT-7200 高级手持式转速表 (18000 - 99999RPM)

Computing System: FFT Calculation

Measurement RPM Range:

250 Hz Range: 3.75 Hz to 250 Hz, 500 Hz Range: 7.5 Hz to 500 Hz, 2 kHz Range: 30 Hz to 2 kHz (18,000 to 99,999 r/min)

RPM Resolution: Depends on Frequency Range and Number of Pulses Set

Measurement Accuracy: +/- 2 x RPM Resolution +/- 1

Measurement Time: 250 ms

Display: 7 Segment LED, 5 Digits, 10.2 mm Character Height

Pulse Count Set Range: 0.5 to 200 in 0.5 Steps

Rotational Direction Determination Function: Not Available

Exponential Averaging: Select: Off, 2, 4, 8, or 16 Times

Analog Output: 0 to 1 V / 0 to F.S.

Comparator Output: Not Available

Interface: None

Dimensions: 189.5 mm (L) x 66 mm (W) x 47.5 mm (D)

Weight: Approximately 230 g

Detection Distance: Varies on the detector being used.

Power / Battery life: Four type AAA batteries or AC Adapter

Operating temperature: 32 - 104°F / 0 - 40°C

Applicable Detectors: OM-1500, OM-1200, IP-292, IP-296, IP-3000A, IP-3100, FT-0810, VP-202, VP-1220, NP-2000 series NP-3000 series, MI-1432 (microphone)+ MI-3111(preamplifier), Magnetic flux leakage sensor, LED reflected-light optical fiber sensor.

Pulse Output: Hi: 4.5 V or more, Lo: 0.5 V or less

Standard accessories: 4 x AAA batteries, carrying case and instruction manuals.
