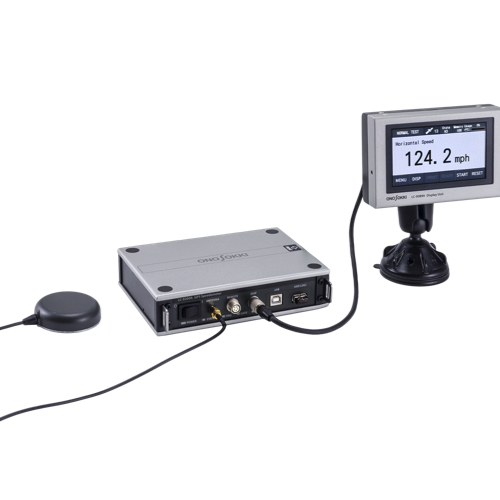

Onosokki LC-8300A 高灵敏度GPS车速表 (0 - 10V)

Measurement Accuracy: Horizontal Speed: 0.1 to 500.0 km/h/±0.1 km/h or less. Horizontal Distance: ±0.1 %

Standard Measurement Items: Horizontal speed (km/h), horizontal distance (m), time (s), UTC time, number of satellite capture, HDOP(Horizontal Dilution of Precision), heading (°), North speed (km/h), East speed (km/h), North distance (m), East distance (m), latitude (dms), longitude (dms), altitude (m)

Optional Measurement Items: Lateral distance (m), vertical speed (km/h), vertical distance (m), VDOP(Vertical Dilution of Precision) , lateral sideslip amount (m), travelling distance (m), roll angle (°), pitch angle (°), yaw angle (°), X acceleration (m/s2), Y acceleration (m/s2), Z acceleration (m/s2), X angular speed (°/s), Y angular speed (°/s), Z angular speed (°/s), gradient (%)

Update (output) Frequency: 100 Hz

General Specifications: Power requirement: DC 9 to 28 V (non-isolation), AC 100 to 240 V (AC adapter used : option)

Outer Dimensions: Main unit: Approximately 170 × 120 × 40 mm (not including protruded section) Approximately 750 g | Display unit: Approximately 132 × 86 × 33 mm (not including protruded section) Approximately 450 g | Remote box: Approximately 115 x 45 x 20 mm (not including protruded section) Approximately 80 g | Antenna: Approximately Φ57 × 15 mm (antenna section) Approximately 110 g

Output: Speed analog output: Range 0 to 10V | SI Units: 0 to 10 V/0 to 500.0 km/h | Mile units: 0 to 10 V/0 to 250.0 mile/h

Output: Distance pulse output: Resolution SI Units: 10, 5, 1 mm/pulse | Output delay time: 10 ms or less | Output signal: Square wave pulse output Hi 5 V ± 0.5 V, Lo 0.5 V or less | Duty: 50 % ± 10 % | Load resistance: Load 10 kΩ or more

Input: Voltage input: Number of channels: 4 | Resolution: 16 | Range: ±20 V | Cutoff frequency: 50 Hz | Others: Trigger function for starting or terminating measurement according to voltage

Input: Pulse input: Number of channels: 1 | Input coupling: AC or DC Function: Pulse count/frequency/duty | Input waveform: DC selected, square wave

Standard Accessories: Touch Panel Display Unit (3m Cable Attached), Remote Box (2m Cable Attached), GPS/GLONASS Antenna, Power Cable for Cigarette Lighter Socket (3m), Pin Jack - BNC Cable (2m), USB Cable for PC (2m), CAN Branch Cable (0.3m), USB Memory, Installation CD, Instruction Manual, Carrying Case, Mount Adaptor for Display Unit, Base Plate for Mount Adaptor.

Details

Datasheet
