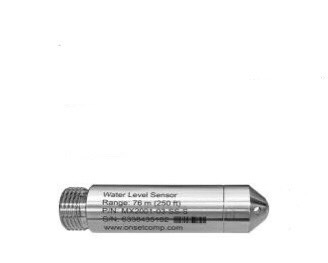

Onset MX2001-03-SS-S 水位传感器 (76m, 250ft)

Pressure (Absolute) and Water Level Measurements:

  Operation Range: 0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude

  Factory Calibrated Range: 69 to 850 kPa (10 to 123.3 psia), 0° to 40°C (32° to 104°F)

  Burst Pressure: 1.200 kPa (174 psia) or 112 m (368 ft) depth

  Water Level Accuracy: Typical error: ±0.05% FS, 3.8 cm (0.125 ft) water; Maximum error: ±0.1% FS, 7.6 cm (0.25 ft) water

  Raw Pressure Accuracy: ±0.3% FS, 2.55 kPa (0.37 psi) maximum error

  Resolution: <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water

  Pressure Response Time (90%): <1 second at a stable temperature

Temperature Measurements:

  Operation Range: -20° to 50°C (-4° to 122°F)

  Accuracy: ±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F)

  Resolution: 0.1°C at 25°C (0.18°F at 77°F)

  Response Time (90%): 5 minutes in water (typical)

Operating Range: -20° to 50°C (-4° to 122°F)

Logging Rate: 1 second to 18 hours

Time Accuracy: ±1 minute per month 0° to 50°C (32° to 122°F)

Battery: Two AA, 1.5 V alkaline batteries, user replaceable

Memory: 256 KB memory (30,000 sets of measurements)

Details

Quick Start Guide
