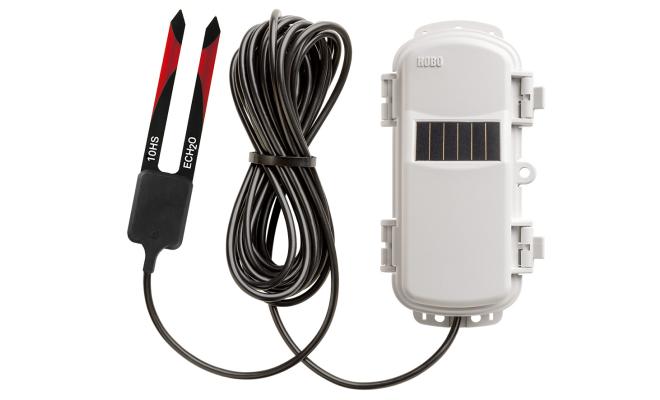

Onset RXW-SMD-868 HOBOnet Soil Moisture 10HS Sensor (0~0.570 m³/m³)

866.5 MHz

Measurement Range: In soil: 0 to 0.570 m³/m³ (volumetric water content)

Extended Range: -0.659 to 0.6026 m³/m³

Accuracy: ±0.033 m³/m³ (±3.3%) typical 0 to 50°C (32° to 122°F) for mineral soils

up to 10 dS/m and ±0.020 m³/m³; (±2%) with soil specific calibration

Resolution: 0.0008 m³/m³ (0.08%)

Volume of Influence: 1 liter (33.81 oz)

Sensor Frequency: 70 MHz

Sensor Operation Temperature Range: 0° to 50°C (32° to 122°F). Although the sensor probe and cable can safely operate at below-freezing temperatures (to -40°C/F), the soil moisture data collected at these extreme temperatures is outside of the sensor’s accurate measurement range. Extended temperatures above 50°C (122°F) will decrease mote battery life.

Wireless Mote:

  Operating Temperature Range: -25° to 60°C (-13° to 140°F) with rechargeable batteries; -40° to 70°C (-40° to 158°F) with lithium batteries

  Logging Rate: 1 minute to 18 hours

  Battery Type/Power Source: Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F)

  Memory: 16 MB

  Dimensions: Soil probe: 160 x 32 x 2 mm (6.5 x 1.25 x 0.08 in.); Cable length: 5 m (16.4 ft); Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)

  Weight: Sensor and cable: 190 grams (6.7 oz); Mote: 223 g (7.87 oz)

Included Items:

  Protective cap

  Cable ties

  Screws
