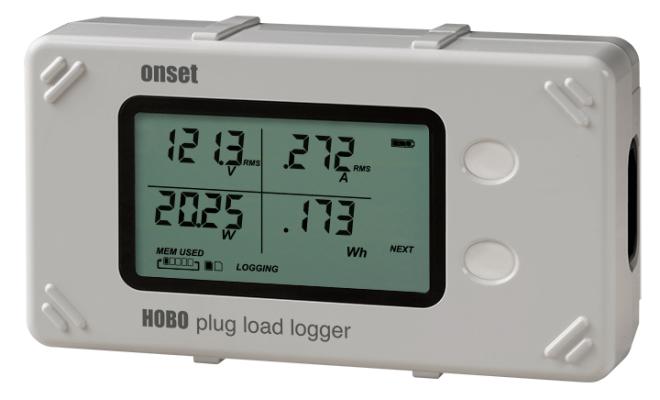

Onset UX120-018 HOBO Plug Load Data Logger (15 Amps)

Maximum Current: 15 Amps

RMS Voltage (V):

  Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

  Resolution: 10 mV

RMS Current (A):

  Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

  Resolution: 0.1 mA

Active Power (W):

  Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

  Resolution: 10 mW down to 1 Watt loads at 120 V AC

Active Energy (Wh):

  Accuracy: 0.5% up to 14 Amp continuous; up to 1.0% over 14 Amp when equipment being monitored is at 100% duty cycle

  Resolution: 10 mWh

Power Factor:

  Accuracy: ±0.02

  Resolution: 0.01 PF

Operating Environment: Logging: 5° to 40°C (41° to 104°F); 0 to 95% RH (non-condensing), up to 2,000 m (6,562 ft) altitude

Logging Rate: 1 second to 18 hours, 12 minutes, 15 seconds

Statistics Sampling Rate: 60 Hz or 16.67 mS single-cycle

Time Accuracy: ±1 minute per month at 25°C (77°F)

Power Source: Line-powered with 0.92 m (3 ft) AC power cord or two AAA 1.5 V alkaline batteries, user replaceable

Memory: 4 MB (1.4 million measurements, maximum)

Size: 13.97 x 7.62 x 4.75 cm (5.5 x 3 x 1.87 in.)

Weight: 230.8 g (8.14 oz)

What's In The Box

  HOBO UX120-018 Plug Load Data Logger

  AC power cord
