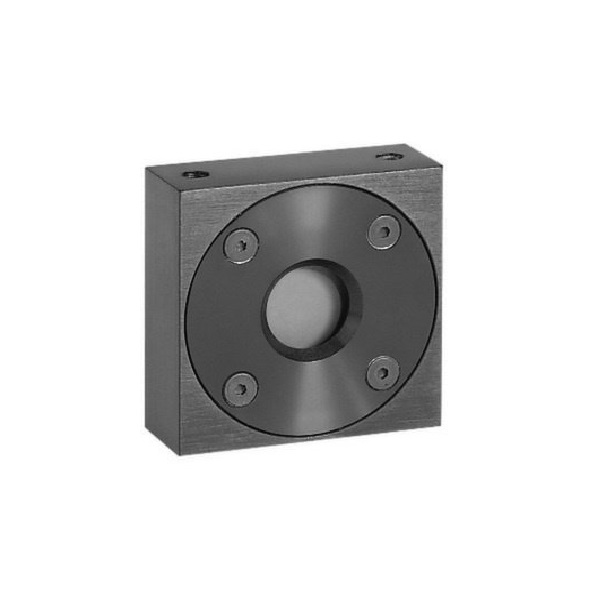

Ophir 20C-UAE OEM 功率传感器 (10mW-20W)

Aperture: Ø12mm

Spectral Range: 0.19-20µm

Power Range: 10mW-20W

Energy Range: 6mJ-10J

Dimensions: 38 L x 38 W x 14 D (mm)

Max Average Power Density: 23kW/cm² at 20W

Response Time: 0.8 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 20W heat sinked

Communication: Ethernet

Compliance: RoHS, China RoHS

Datasheet
