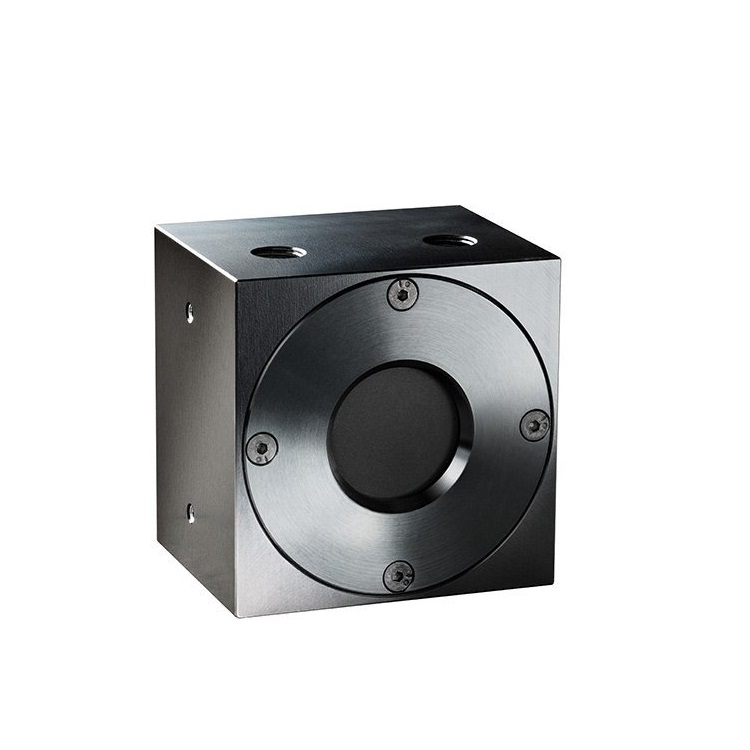

Ophir 600W-UAU OEM功率传感器 (5W-600W)

Aperture: Ø26mm

Spectral Range: 0.35-2.2µm

Power Range: 5W-600W

Energy Range: 500mJ-300J

Dimensions: 65 L x 65 W x 49 D (mm)

Max Average Power Density: 11kW/cm² at 600W

Response Time: 2.5s

Max Energy Density (for <100ns): 0.1J/cm²

Max Energy Density (for 2ms): 130J/cm²

Max Average Power: 600W

Communication: USB

Compliance: RoHS, China RoHS

Details

Datasheet
