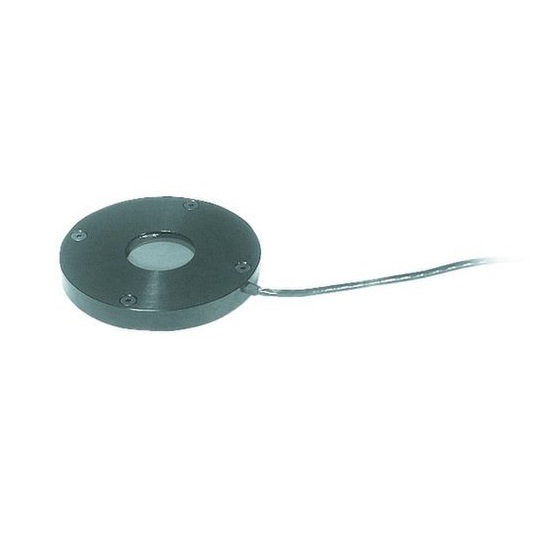

Ophir L30A-10MM 低功耗热传感器 (80mW-30W)
制造商: Ophir Model: L30A-10MM P/N: 7Z02273 - 报价要求
- 报价要求
- 联系
Absorber Type: Broadband
Aperture: Ø26mm
Spectral Range: 0.15-20µm
Power Range: 80mW-30W
Energy Range: 20mJ-60J
Backscattered Power: N.A.
Dimensions: Ø75 W x 10 D (mm)
Max Pulse Energy: 60J
Max Average Power Density: 20kW/cm²
Response Time: 1.5 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 30W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
