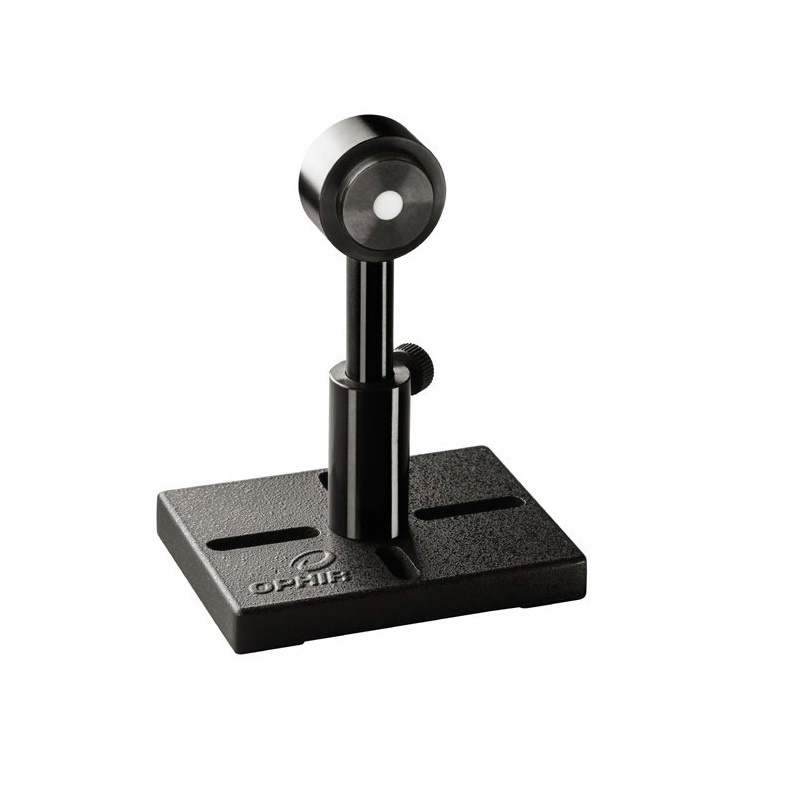

Ophir PD300RM-8W 辐照度和剂量传感器

Aperture: Ø8mm

Spectral Range: 350-850nm

Irradiance Range: 1μW/cm²-8W/cm²

Dimensions: Ø35 W x 21 D (mm)

Max Average Power Density: 50W/cm²

Response Time: 0.2 s

Thermal Coefficient: -0.03%/°C

f'2 Cosine Correction Factor Accuracy: 5%

Compliance: CE, UKCA, China RoHS
