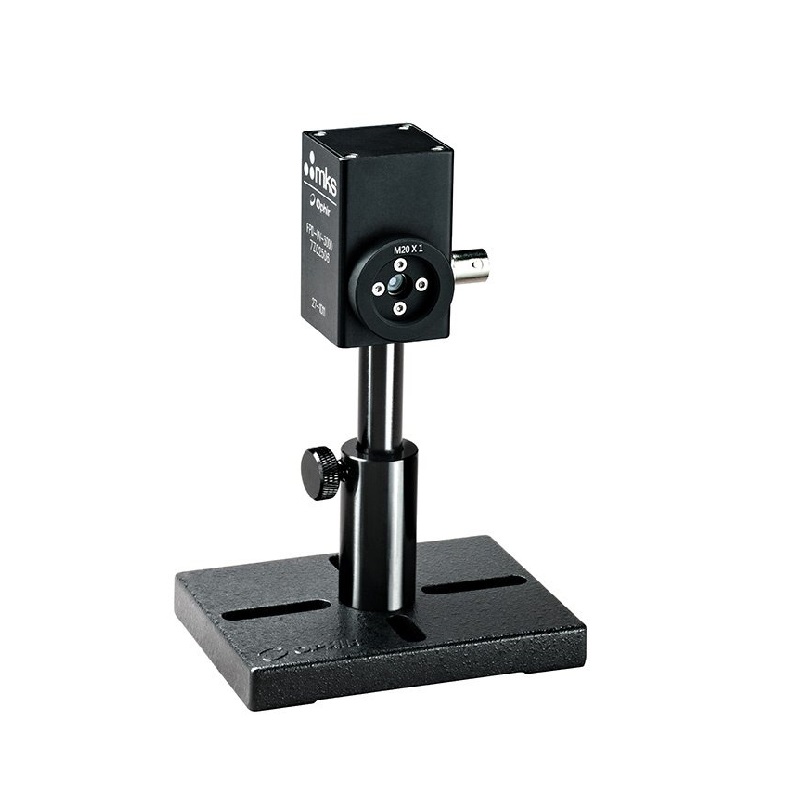

Ophir FPD-IG-25 激光功率传感器

Detector Type: InGaAs

Rise Time/Fall Time: <0.025 nsec

Spectral Range: 900-1700 nm

Active Area Diameter: 0.032 mm

Noise Equivalent Power: 20 pW/√Hz

Dimensions: 54 L x 34 W x 40 D (mm)

Detector Area: 0.00080 mm²

Responsivity at Peak Wavelength: 0.95 A/W

Responsivity (Irradiance) at Peak Wavelength: 0.19 x 10⁻³ V/(W/cm²)

Bias Voltage: 6 VDC

Bias Voltage Source: Batteries

Bandwidth: >15 GHz

Dark Current: <3 nA

Maximum Average Power Input: 10 mW

Mounting (Tapped Holes): 8-32 & M4

Output Connector: SMA

Accessory Threads: M20x1

Compliance: CE, UKCA, China RoHS
