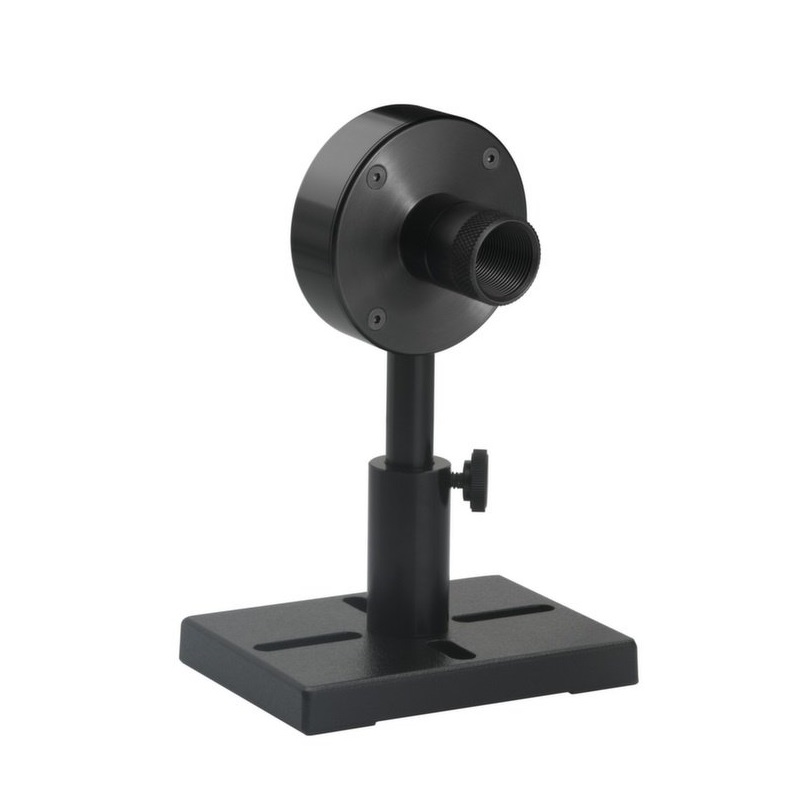

Ophir 3A 高灵敏度热激光传感器 (10µW-3W)

Absorber Type: Low power broadband

Aperture: Ø9.5mm

Spectral Range: 0.19-20µm

Power Range: 10µW-3W

Energy Range: 20µJ-2J

Backscattered Power: N.A.

Dimensions: Ø70 W x 30 D (mm)

Max Pulse Energy: 2J

Max Average Power Density: 1kW/cm²

Response Time: 1.8 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 2J/cm²

Max Average Power: 3W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS

Details

Datasheet
