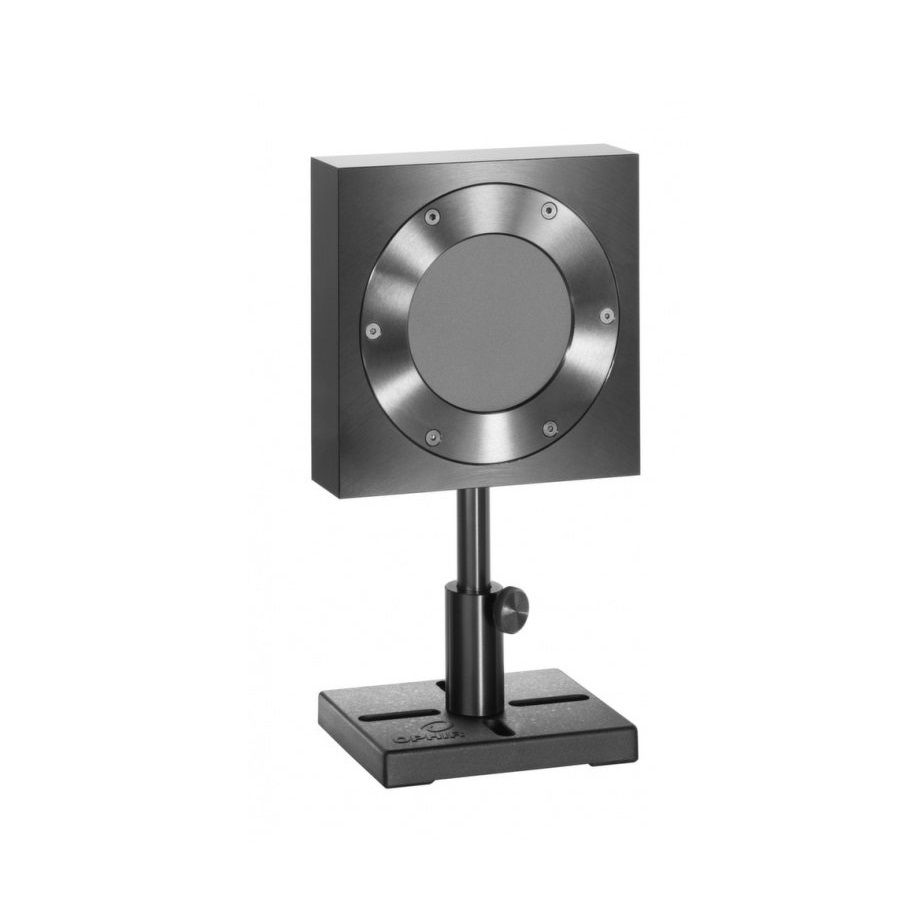

| 制造商: | Ophir |
| Model: | L50(300)A |
| P/N: | 7Z02658 |
Absorber Type: Broadband
Aperture: Ø65mm
Spectral Range: 0.19-20µm
Power Range: 400mW-300W
Energy Range: 200mJ-300J
Dimensions: 120 L x 120 W x 30 D (mm)
Max Pulse Energy: 300J
Max Average Power Density: 9.5kW/cm²
Response Time: 3 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 300W
Compliance: CE, UKCA, China RoHS
