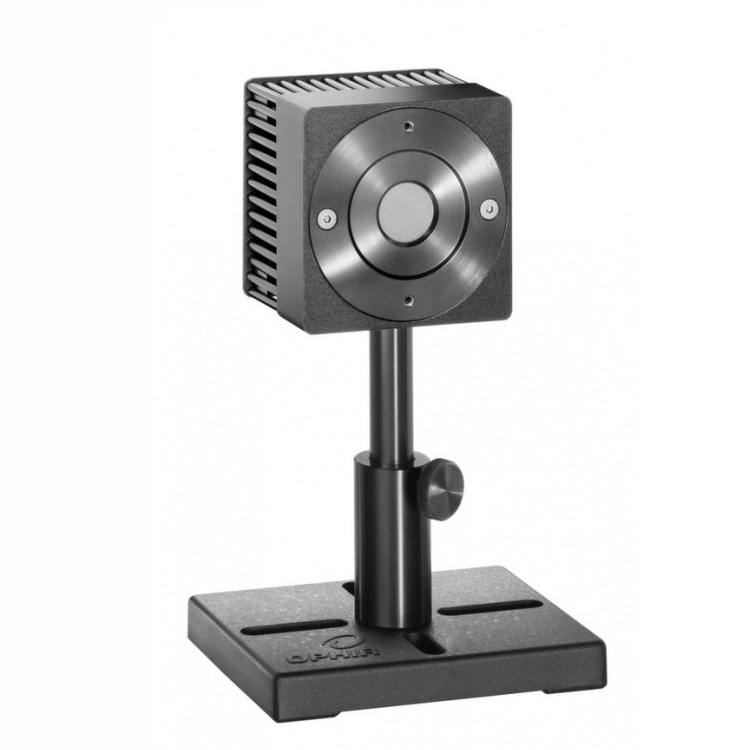

Ophir 30A-P-17 低功耗热传感器 (60mW-30W)

Absorber Type: P type

Aperture: Ø17mm

Spectral Range: 0.15-8µm

Power Range: 60mW-30W

Energy Range: 40mJ-30J

Backscattered Power: N.A.

Dimensions: 64 L x 64 W x 48 D (mm)

Max Pulse Energy: 30J

Max Average Power Density: 0.05kW/cm²

Response Time: 2.5 s

Max Energy Density (for <100ns): 1J/cm²

Max Energy Density (for 2ms): 1J/cm²

Max Average Power: 30W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS
