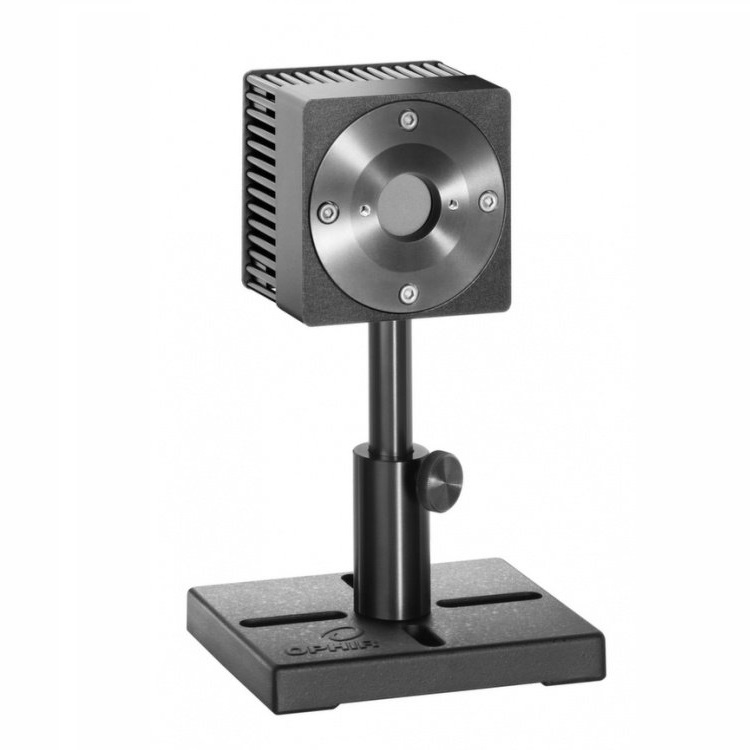

Ophir 30A-N-18 低功率热传感器 (60mW-30W)
制造商: Ophir Model: 30A-N-18 P/N: 7Z02695 - 报价要求
- 报价要求
- 联系
Absorber Type: N type
Aperture: Ø17.5mm
Spectral Range: 0.532, 1.064µm
Power Range: 60mW-30W
Energy Range: 30mJ-200J
Backscattered Power: N.A.
Dimensions: 64 L x 64 W x 49 D (mm)
Max Pulse Energy: 200J
Max Average Power Density: 5kW/cm²
Response Time: 2 s
Max Energy Density (for <100ns): 1J/cm²
Max Energy Density (for 2ms): 50J/cm²
Max Average Power: 30W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
