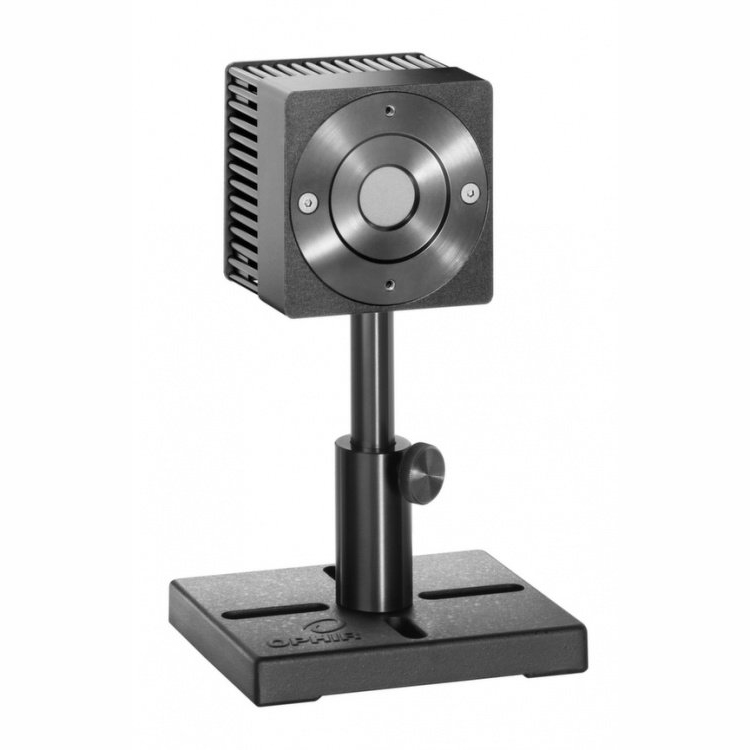

Ophir 30(150)A-HE-17 中低功率热传感器 (50mW-150W)
制造商: Ophir Model: 30(150)A-HE-17 P/N: 7Z02722 - 报价要求
- 报价要求
- 联系
Absorber Type: HE
Aperture: Ø17mm
Spectral Range: 0.19-0.625µm, 1.064µm, 2.1µm, 2.94µm
Power Range: 50mW-150W
Energy Range: 60mJ-200J
Dimensions: 64 L x 64 W x 48 D (mm)
Max Pulse Energy: 200J
Max Average Power Density: 0.5kW/cm²
Response Time: 3.8 s
Max Energy Density (for <100ns): 2J/cm²
Max Energy Density (for 2ms): 40J/cm²
Max Average Power: 150W
Compliance: CE, UKCA, China RoHS
