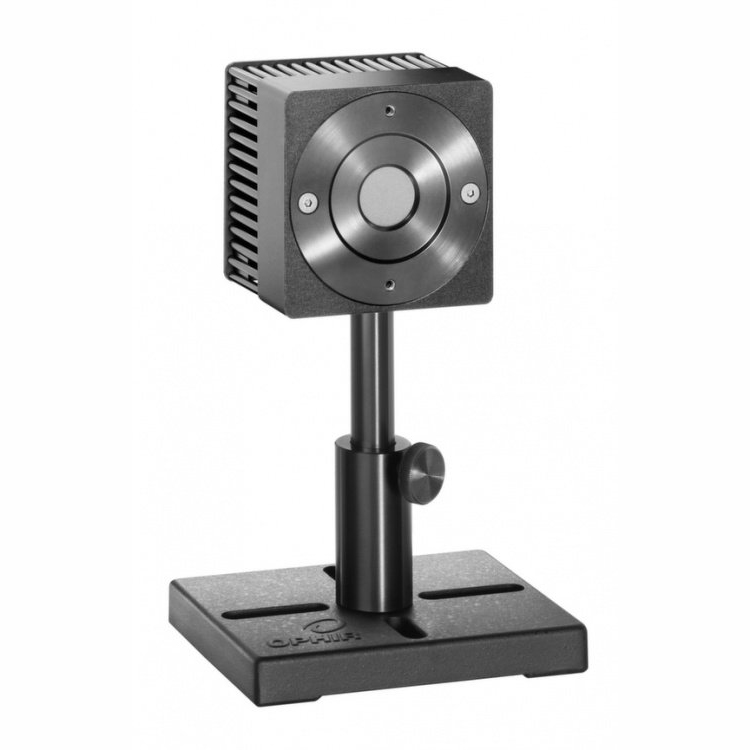

Ophir 30(150)A-SV-17 中低功率热传感器 (100mW-150W)

Absorber Type: SV

Aperture: Ø17mm

Spectral Range: 0.19 to 11µm

Power Range: 100mW-150W

Energy Range: 50mJ-300J

Dimensions: 64 L x 64 W x 48 D (mm)

Max Pulse Energy: 300J

Max Average Power Density: 60kW/cm²

Response Time: 1.7 s

Max Energy Density (for <100ns): 1J/cm²

Max Energy Density (for 2ms): 50J/cm²

Max Average Power: 150W

Compliance: CE, UKCA, China RoHS

Details

Datasheet
