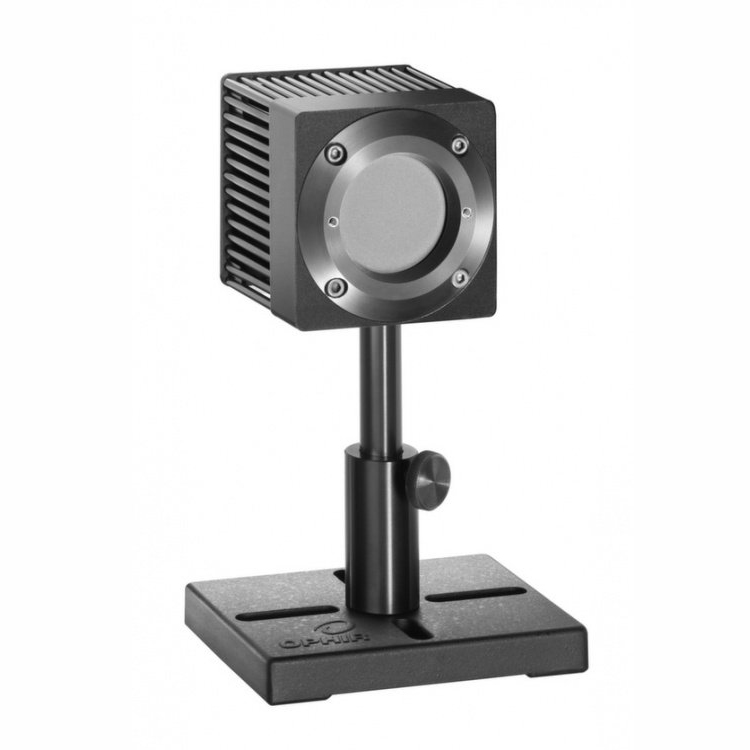

Ophir L50(150)A-PF-35 中低功率热传感器 (100mW-150W)

Absorber Type: PF

Aperture: Ø35mm

Spectral Range: 0.15-20µm

Power Range: 100mW-150W

Energy Range: 50mJ-300J

Dimensions: 64 L x 64 W x 66 D (mm)

Max Pulse Energy: 300J

Max Average Power Density: 3kW/cm²

Response Time: 2 s

Max Energy Density (for <100ns): 1.5J/cm²

Max Energy Density (for 2ms): 15J/cm²

Max Average Power: 150W

Compliance: CE, UKCA, China RoHS
