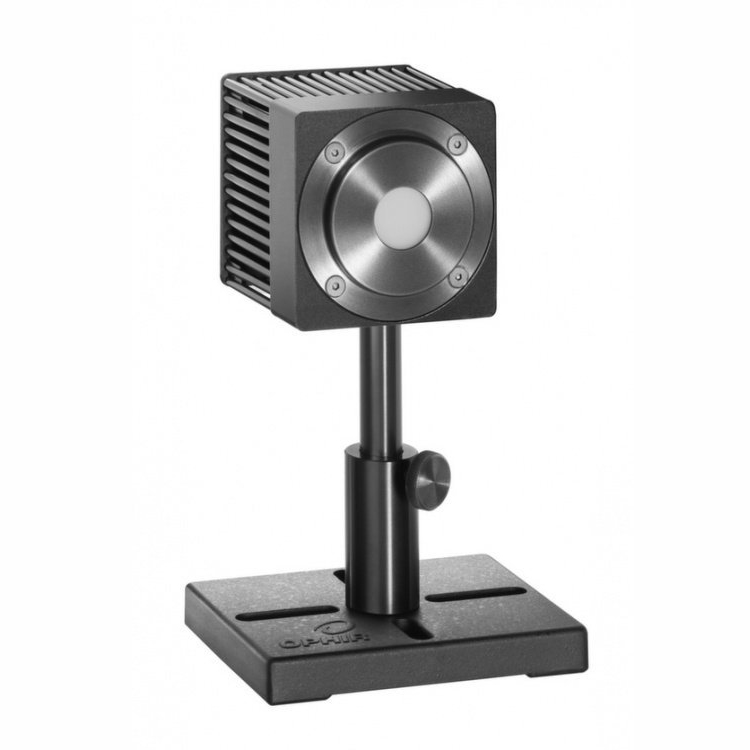

Ophir 50A-PF-DIF-18 低功率热传感器 (140mW-50W)

Absorber Type: PF type + diffuser

Aperture: Ø17.5mm

Spectral Range: 0.24-2.2µm

Power Range: 140mW-50W

Energy Range: 60mJ-200J

Backscattered Power: N.A.

Dimensions: 64 L x 64 W x 75 D (mm)

Max Pulse Energy: 200J

Max Average Power Density: 0.5kW/cm²

Response Time: 2 s

Max Energy Density (for <100ns): 4J/cm²

Max Energy Density (for 2ms): 50J/cm²

Max Average Power: 50W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS

Details

Datasheet
