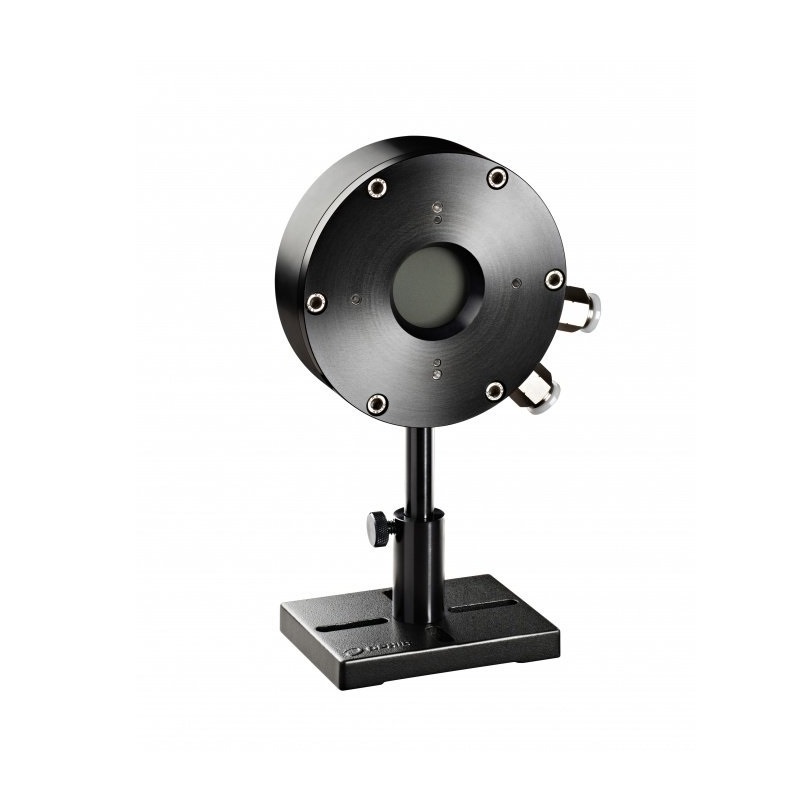

Ophir 1000WP-BB-34 热功率/能量激光传感器 (5W-1000W)

Absorber Type: Broadband

Aperture: Ø34mm

Spectral Range: 0.19-20µm

Power Range: 5W-1000W

Energy Range: 400mJ-300J

Backscattered Power: N.A.

Dimensions: Ø115 W x 36 D (mm)

Max Pulse Energy: 300J

Max Average Power Density: 7kW/cm²

Response Time: 2.5 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 1000W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS
