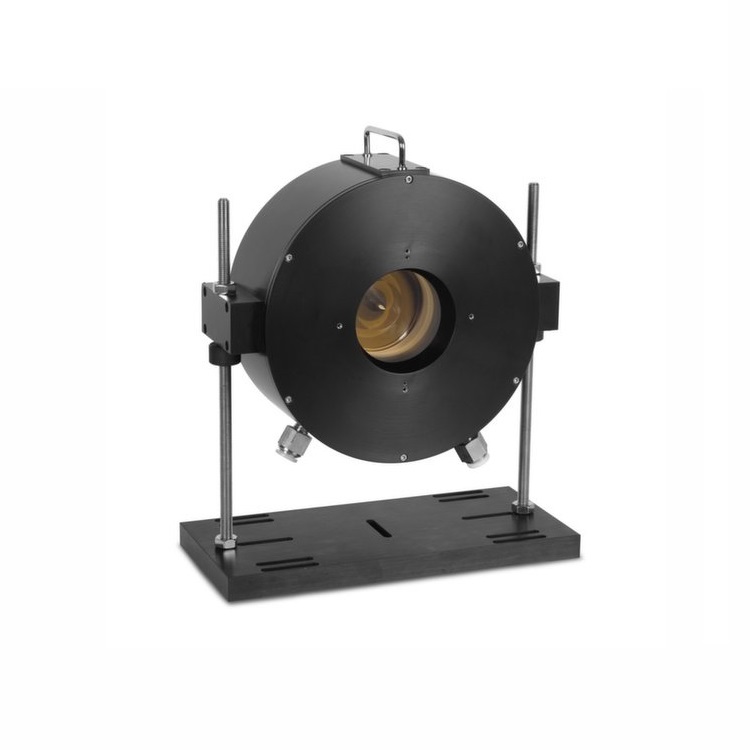

Ophir 30K-W-BB-74 高功率热传感器 (100W-30,000W)
制造商: Ophir Model: 30K-W-BB-74 P/N: 7Z02757 - 报价要求
- 报价要求
- 联系
Absorber Type: Beam deflector + broadband absorber
Aperture: Ø74mm
Spectral Range: 0.8-2µm, 10.6µm
Power Range: 100W-30,000W
Energy Range: N.A.
Backscattered Power: ~4.3% without Scatter Shield, ~1.3% with Scatter Shield
Dimensions: Ø229 W x 100 D (mm)
Max Pulse Energy: N.A.
Max Average Power Density: 10kW/cm²
Response Time: 7 s
Max Energy Density (for <100ns): N.A.
Max Energy Density (for 2ms): N.A.
Max Average Power: 30kW
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
