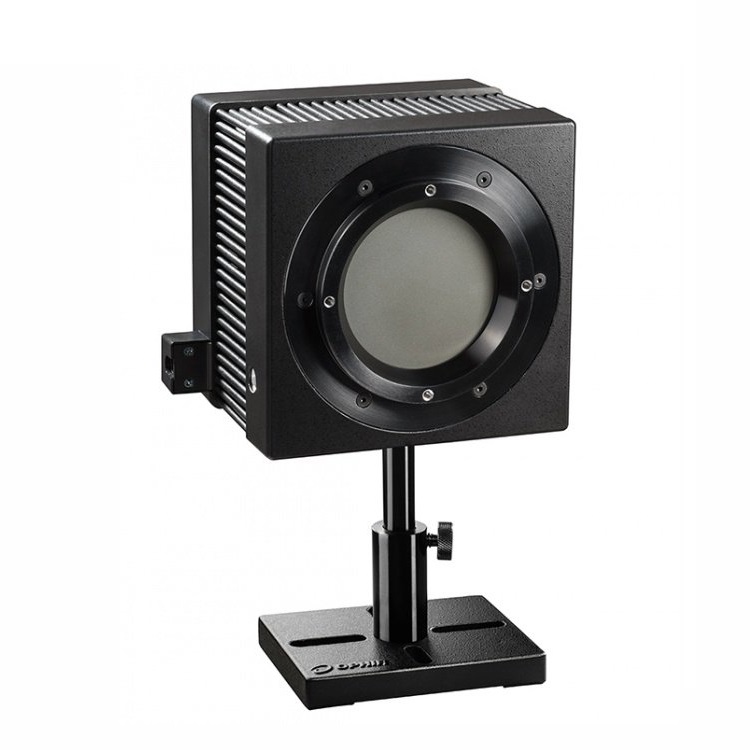

Ophir FL1100A-BB-65 中高功率风扇冷却热传感器 (5W-1100W)

Absorber Type: Broadband

Aperture: Ø65mm

Spectral Range: 0.19-11µm

Power Range: 5W-1100W

Energy Range: 600mJ-600J

Backscattered Power: N.A.

Dimensions: 128 L x 128 W x 129 D (mm)

Max Pulse Energy: 600J

Max Average Power Density: 5.5kW/cm²

Response Time: 4 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 1100W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS

Datasheet
