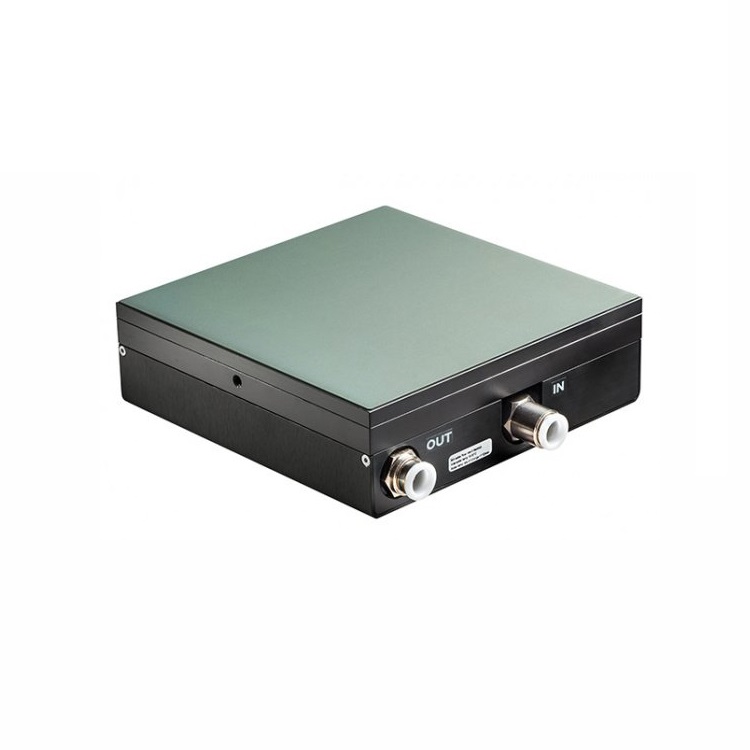

Ophir 6K-W-BB-200x200 热功率/能量激光传感器 (200W-6000W)

Absorber Type: Broadband

Aperture: 198 x 198 mm

Spectral Range: 0.19-20µm

Power Range: 200W-6000W

Energy Range: N.A.

Backscattered Power: N.A.

Dimensions: 200 L x 200 W x 61 D (mm)

Max Pulse Energy: N.A.

Max Average Power Density: 0.4kW/cm²

Response Time: 50 s

Max Energy Density (for <100ns): 0.3J/cm²

Max Energy Density (for 2ms): 10J/cm²

Max Average Power: 6000W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS
