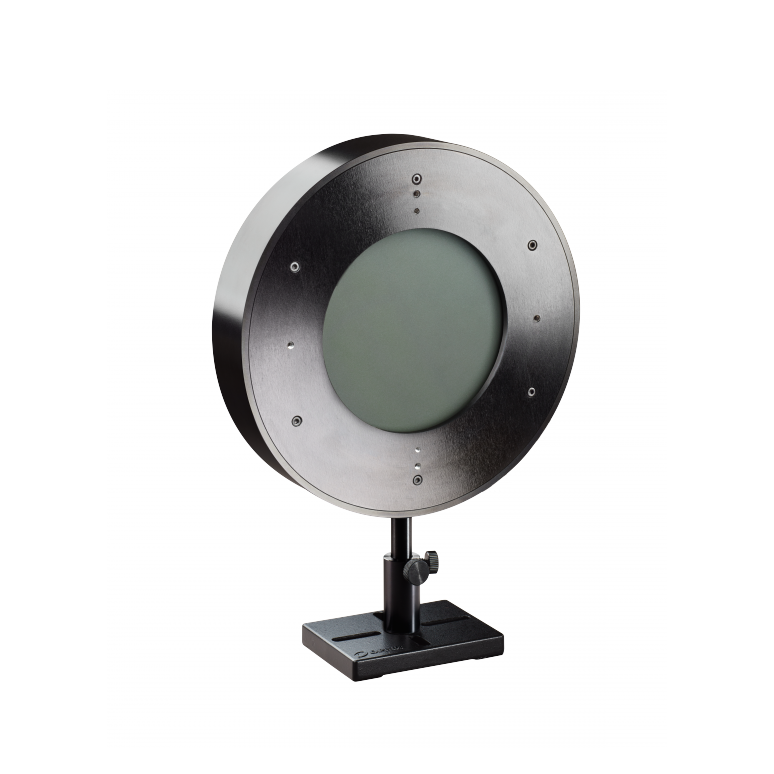

Ophir L100(500)A-PF-120 中功率热传感器 (1W-500W)

Absorber Type: PF volume absorber

Aperture: Ø120mm

Spectral Range: 0.15-20µm

Power Range: 1W-500W

Energy Range: 6J-6000J

Dimensions: Ø200 W x 35 D (mm)

Max Pulse Energy: 6000J

Max Average Power Density: 2kW/cm²

Response Time: 7 s

Max Energy Density (for <100ns): 1.5J/cm²

Max Energy Density (for 2ms): 15J/cm²

Max Average Power: 500W

Compliance: CE, UKCA, China RoHS

Details

Datasheet
