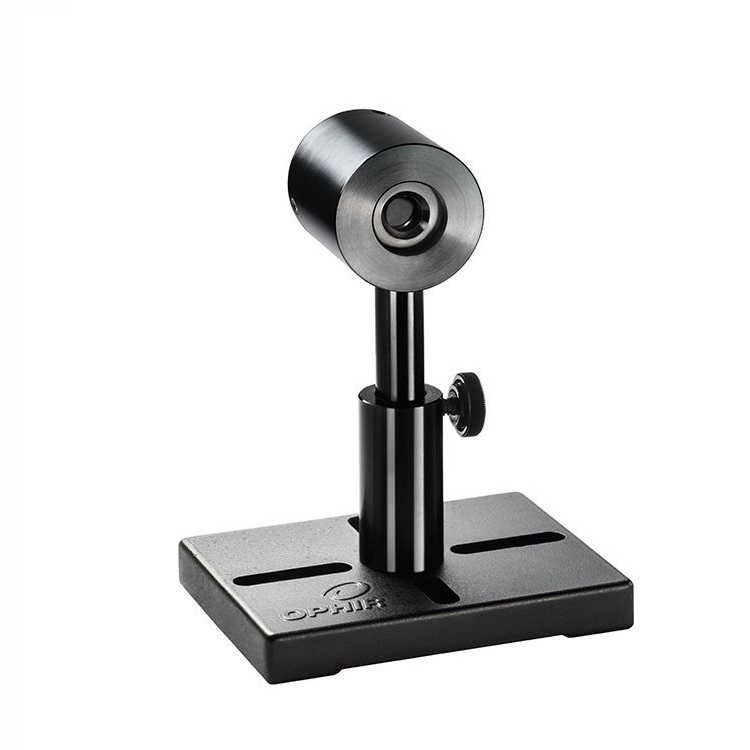

Ophir 2A-BB-9 高灵敏度热激光传感器 (20µW-2W)
制造商: Ophir Model: 2A-BB-9 P/N: 7Z02767 - 报价要求
- 报价要求
- 联系
Absorber Type: Low power broadband
Aperture: Ø9.5mm
Spectral Range: 0.19-20µm
Power Range: 20µW-2W
Energy Range: 20µJ-2J
Backscattered Power: N.A.
Dimensions: Ø40 W x 51 D (mm)
Max Pulse Energy: 2J
Max Average Power Density: 1kW/cm²
Response Time: 1.8 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 2J/cm²
Max Average Power: 2W
BeamTrack Functions: N.A.
Compliance: CE, UKCA, China RoHS
