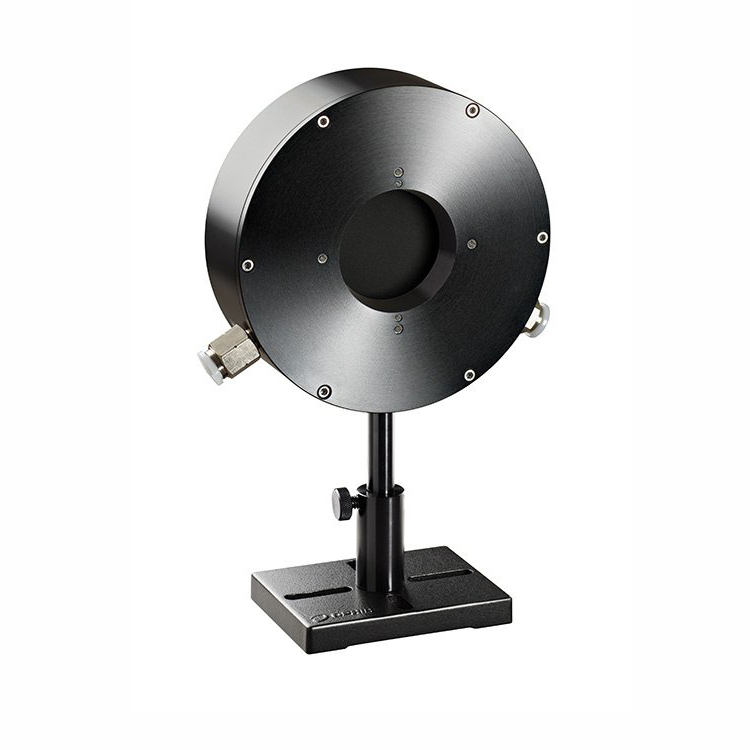

Ophir 5000W-LP2-50 热功率/能量激光传感器 (20W-5000W)

Absorber Type: LP2

Aperture: Ø50mm

Spectral Range: 0.35-2.2µm

Power Range: 20W-5000W

Energy Range: N.A.

Backscattered Power: N.A.

Dimensions: Ø146 W x 47D (mm)

Max Pulse Energy: N.A.

Max Average Power Density: 2.5kW/cm²

Response Time: 3 s

Max Energy Density (for <100ns): 0.1J/cm²

Max Energy Density (for 2ms): 130J/cm²

Max Average Power: 5000W

BeamTrack Functions: N.A.

Compliance: CE, UKCA, China RoHS
