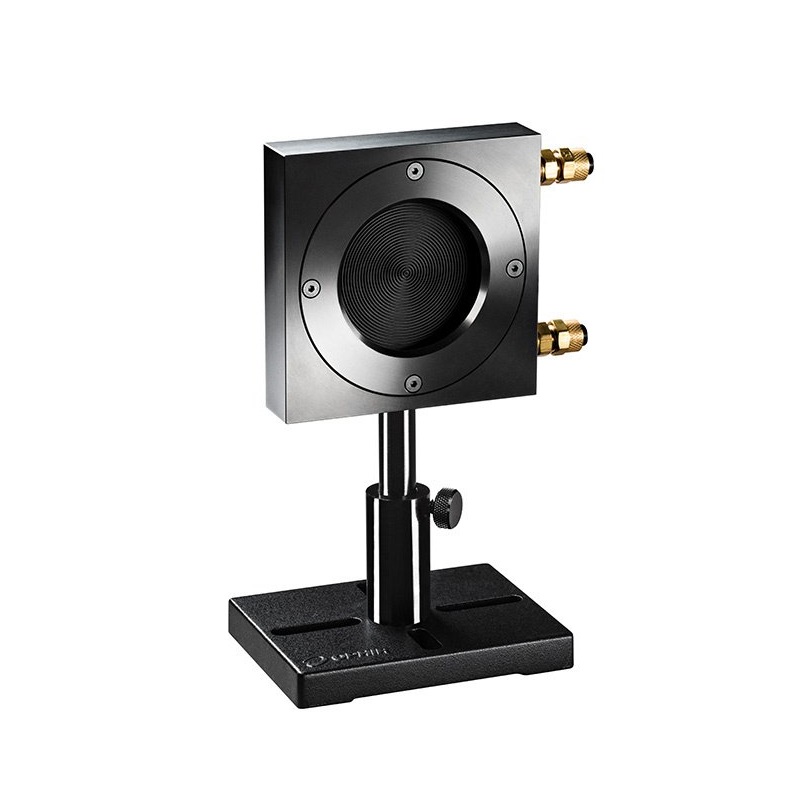

Ophir L300W-LP2-50 热功率/能量激光传感器 (0.5W-300W)

Absorber Type: LP2

Aperture: Ø50mm

Spectral Range: 0.35-2.2µm, 10.6µm

Power Range: 0.5W-300W

Energy Range: 200mJ-300J

Backscattered Power: N.A.

Dimensions: 90 L x 90 W x 20 D (mm)

Max Pulse Energy: 300J

Max Average Power Density: 12kW/cm²

Response Time: 2.5 s

Max Energy Density (for <100ns): 0.07J/cm²

Max Energy Density (for 2ms): 90J/cm²

Max Average Power: 300W

BeamTrack Functions: N.A.

Compliance: CE, China RoHS

Details

Datasheet
